MOQ: | 5 sets |
Price: | Negotiable |
Standard Packaging: | standard packing |
Delivery Period: | 5-15days |
Payment Method: | L/C, T/T |
Supply Capacity: | 500sets/day |

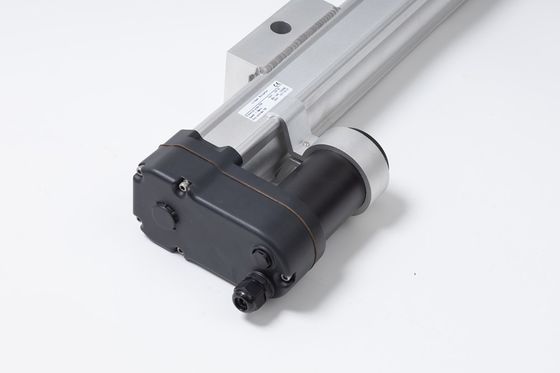

IP66 24VDC 10000N-15000N, solar tracking system linear actuator
Specifications
• 24 V DC permanent magnetic motor
• Force 10 kN (10.000 cycles) – 15 kN (2000 cycles)
• Static holding force up to 45 kN* in push and pull
• Dynamic wind stress forces 15 kN push/pull 80.000 times
• Speed 1.4/2/3 mm/sec.
• Max.stroke length 1200 mm
• Heavy-duty aluminum housing for harsh conditions
• Highly efficient acme thread spindle
• Protection class: IP66 for outdoor use (dynamic)
• Integrated brake, high self-locking ability
• Typically endplay from outertube to ball rod eye is 0.25 to 0.5 mm, expected extra play after 10 years + 0.4 mm
• Non-rotating piston rod eye
• Embedded electronics and feedback, e.g. HALL pulses
• Ball rod eye
• Noise level: 56 dB (A) measuring method DS/EN ISO 8746 actuator not locked
• Design for 25 years service life Options:
• Built-in end stop switches
• Hall effect sensor with A/B –signal
• Exchangeable cables in different lengths Usage:
• Duty cycle at max. load 12% at -30°C to +70°C
• Ambient operating temperature and full 15 kN performance from -30°C to +70°C
Linear Graph
Intallation Dimension
