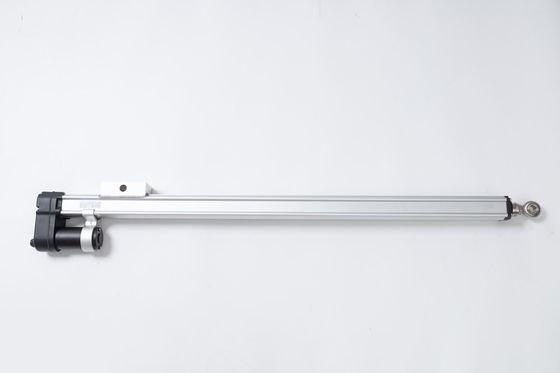

Name: IP66 Single Axis Dual Axis Solar Tracker Linear Actuator
Brand: Changzhou Bextreme Shell Motor Technology Co.,Ltd
SKU: OLA-928
Availability: InStock

MOQ:	1
Standard Packaging:	carton+foam
Payment Method:	L/C, T/T

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bextreme Shell

Certification

Model Number

OLA-928

Working Voltage:

12V/24VDC

Max Speed:

3mm/sec

Max Torque:

12000N

Standard Stroke:

50-1200mm

Protection Class:

IP66

Material:

Aluminum Housing, Stainless Steel Rod

Highlight:

Dual Axis Solar Tracker Linear Actuator

Single Axis Solar Tracker Linear Actuator

IP66 Solar Tracker Actuator

Product Description

OLA-928 IP66 Single Axis Solar Tracker Dual-axis solar tracker Linear Actuator

Product Overview

OLA-928 Linear Actuator for Solar Tracker

The solar product range has been designed with all challenges like limited end play, high precision, large holding forces due to wind loads etc. Our design criteria have been to design actuators with a lifetime of 20 years.

FEATURES AT A GLANCE

• Max thrust up to 12,000 N • Max speed up to 3 mm/sec
• Standard stroke 50 - 1200 mm
• Protection class IP66
• Voltage 12 or 24V DC

• Aluminum housing,
Stainless steel rod
• Integrated brake,
high self-locking ability
• Built-in endstop and feedback systems
• Salt spray and chemical tested
• Working temperature -40℃ to +70℃
• Small full-load-current

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Max thrust	12000N
2	Max speed	3 mm/sec
3	Standard stroke	50 - 1200 mm
4	Protection class	IP66
5	Working Voltage	12V or 24VDC
6	Working temperature	-40℃ to +70℃
7	Housing	Aluminum
8	End Rod	Stainless steel

OVERALL DIMENSIONS

PRODUCT CONFIGURATION

Successful Project

Factory photos

FAQ

Q1:What is a solar tracker ?A1:A solar tracker is a device that tracks the sun as it moves on its path through the sky during the day, exposing your PV cells to an increased amount of sunlight and hence producing more electricity. This is because PV cells work best when they are directly facing the sun. The angle of the sun in the sky changes throughout the year as the tilt of the earth relative to the sun alters. In summer the sun is high in the sky and is also in the sky for longer as it travels through a longer arc length. In winter the sun is lower in the sky and is around for a shorter time as it travels through a shorter arc.

What types of solar trackers are there ?

Single-axis solar trackers follow the sun from sunrise to sunset as it moves in the sky through the day from east to west. They are called a single-axis trackers as the mechanism only rotates in one plane around a single axis. The axis can be oriented so that the cells stand up at a tilt (called a polar axis) or lie flat (called a horizontal axis). Horizontal axis’ are more suitable for small latitudes , whilst polar axis are more suitable for larger latitudes.

Dual-axis, or two-axis, trackers follow the sun completely. The two axes of rotation allow the tracker to position the solar cells directly perpendicular to the sun’s ray all the time. As they are able to adjust for the sun’s height as well east to west rotation dual-axis trackers fully adjust for seasons as well as adjusting to face the sun as it sits low in the horizon at sunrise and sunset, and high in the sky in the middle of the day.
