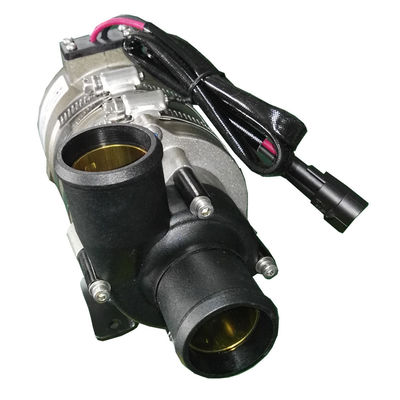

18V 200W Automotive Electric Water Pump For Electric Vans Cooling

MOQ: 5 sets
Price: Negotiable
Payment Method: L/C, T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
OWO
Model Number
OWP-6000KL67
Operate Voltage:
DC 18V-32V
Max Flow::
8500L/H
Max Head::
9.5M
Rated Flow &lift:
6000L/H,head H ≥4M
Noise:
≤60dB
Ip Grade:
IP67
Service Life:
≥20000h
Motor:
Brushless Motor
Controller:
Sine Wave Driver
Highlight:

6000KL67 Automotive Electric Water Pump

,

18V OWP 6000KL67

,

18 volt OWP 6000KL67

Product Description

24V 200W heavy duty electric water pump for electric bus, truck battery and controller cooling

OWP-6000KL67 200W heavy duty electric water pump for electric bus/truck battery and controller cooling system



Applications:



1: electric vehicles cooling system

2: engine,battery,controller,AC coolant circulation

3: industrial cooling system





No. Items Parameter
1

Medium

temperature range

Max 40% Glycol

-40℃～85℃
2 Flow & Head Flow Q=6000L/H, Head H≥4M
3 Noise ≤60dB
4 Rated Voltage DC24V
5 Operating Voltage DC18～32V
6 Max Current ≤10A
7 Power 120W±10W
8 IP Grade IP67
9 Service life ≥20000h
10 Net Weight 1.7kg



18V 200W Automotive Electric Water Pump For Electric Vans Cooling 0Advantages of our electric water pump

*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%


*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability


*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.


*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .


*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.


*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.



Structure of electric water pump

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 1



Simulation calculation of hydraulic design of electric pump

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 2

Electric water pump design principle

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 3

Electric water pump design verification - electromagnetic theory design verification

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 4

Design verification of electric pump product design - test verification

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 5

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 6

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 7

18V 200W Automotive Electric Water Pump For Electric Vans Cooling 8
