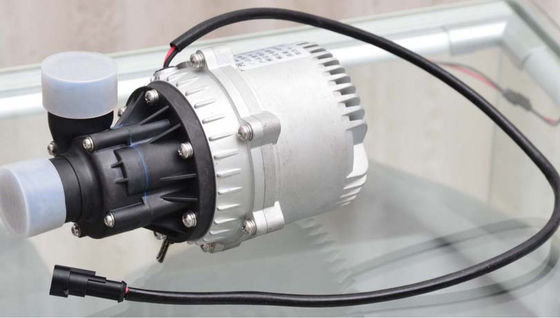

Product Details:
|
| Operate Voltage: | DC 18V-28V | Max Flow:: | 8000L/H |
|---|---|---|---|
| Max Head:: | 9.1M | Rated Flow &lift: | 6000L/H,head H ≥4M |
| Noise: | ≤70dB | Ip Grade: | IP67 |
| Service Life: | ≥20000h | ||
| High Light: | 24v dc brushless water pumps,IP67 brushless dc motor water pumps,24VDC electric engine water pump |
||
Applications:
1: electric vehicles cooling system
2: engine,battery,controller,AC coolant circulation
3: industrial cooling system
| No. | Items | Parameter |
| 1 |
Medium temperature range |
Max 40% Glycol -40℃～85℃ |
| 2 | Flow & Head | Flow Q=6000L/H, Head H≥4M |
| 3 | Noise | ≤70dB |
| 4 | Rated Voltage | DC24V |
| 5 | Operating Voltage | DC18～28V |
| 6 | Max Current | ≤10A |
| 7 | Power | 210W±10W |
| 8 | IP Grade | IP67 |
| 9 | Service life | ≥20000h |
| 10 | Net Weight | 1.7kg |
Advantages of our electric water pump
*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%
*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability
*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.
*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .
*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.
*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.
Structure of electric water pump
Simulation calculation of hydraulic design of electric pump
Electric water pump design principle
Electric water pump design verification - electromagnetic theory design verification
Design verification of electric pump product design - test verification
Pump Size:
