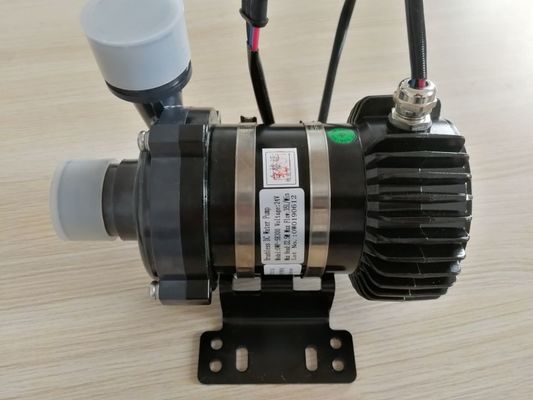

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume
Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume

Large Image :  Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume

Product Details:
Place of Origin: China
Brand Name: OWO
Model Number: OWP-SH300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Payment Terms: L/C, T/T,L/C

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume

Description
Operate Voltage: DC 20V-32V Max Flow:: 5000L/H
Max Head:: 24M Noise: ≤65dB
Ip Grade: IP67 Service Life: ≥20000h
Max Power: 300W
High Light:

heavy duty electric water pump

,

electric engine water pump



OWP-SH300 Brushless water pump
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump
PWM control / CAN BUS(optional)



Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 0



Brief introduction and technical specifications
1,Electric water pump application:


Definition of centrifugal pump :
Centrifugal pumps are used to transport fluids by the conversion of rotational kinetic energy to the hydrodynamic
energy of the fluid flow. The rotational energy typically comes from an engine or
electric motor. The fluid enters the pump
impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward into a diffuser or volute chamber (casing),from which it exits.





Applications:
Widely used in hybrid bus, hybrid
passenger car, electric vehicles, trains,
ships and other heating and
cooling circulation system.



Structural features :
1: Major structure :Pump head, brushless DC motor
and controller

2:Features : Compact structure, strong sealing, strong
adaptability to the environment and media, structure and
material are corrosion resistance, high impact resistance,

with good heat dissipation structure.

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 1Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 2





1,OWP-SH300 Water pump structure

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 3


Brief introduction and technical specifications

Performance index II:
1, Efficiency(H=20m;η≥43%);
2,Flow(H=20m;Q≥ 2000L/H) .


Performance index I:
Head(H=24±1m;Q=0 L/H) .


Performance index III:
1,Efficiency (H=16m;η≥52%);
2,Flow (H=16m;Q=3100L/H)


Performance index IV:
1, Efficiency(H=10m;η≥43%);
2, Flow(H=10m;Q=4200L/H) .


1,OWP-SH300 performance curve

OWP-SH300 water pump Flow & Head performance curve

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 4

2, Technical specifications of OWP-SH300 water pump


N0. Item Parameters Remark
1 Rated Voltage DC24V
2 Working Voltage DC20~32V
3 Service life ≥20000h
4 Working Noise ≤60 dB
5 Cut-off cycles ≥100000 times
6 Ambient temperature -40℃~105℃
7 Motor insulation grade Class F
8 Class of protection IP67
9 Working medium anti-freezing liquid
10 Control mode PWM or CAN(optional)





1,Water pump head structural features
Pump head:

1: Volute chamber and impeller made by High-performance plastic material(Compression resistance, high
strength, corrosion resistance) ;

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 5


2:Features of low specific revolution
impeller chamber and impeller structure:The restriction of fluid flow is enhanced
and the diversion effect is good,small hydraulic loss; the water resistance friction is low, the fluid fluctuation is small


3 :The structural characteristics of high-lift pump volute chamber: improve the shape of the runner channel,volute tongue Angle
and volute profile; It can well-reduce the eddy current loss, impact loss and wake jet flow under high pressure.


Water pump head structural features
1: Long life, high durability;
2: High hydraulic efficiency(Rated condition ≥64%);
3: Good stability and low noise



4: Flat washers:
The wear resistance of ceramic bearing is improved by using hard alloy material with high wear resistance, so it will improve the stability and durability.

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 6


2:Brushless Motor structure features
Motor structure :



1:The rotor stainless steel housing is
sealed by laser welded
a)The new stainless steel material is
more resistant to corrosion ;
b)Much better leakproofness ;



2: The stator winding :
1, Reduce resistance, reduce
heat loss ;2, Reduce the
number of windings; Reduce
the volume of space.
c)Reduce the magnetic gap , reduce
magnetic flux loss ;


BLDC motor structural features
1,Tight seal, high corrosion resistance, strong
medium adaptability;
2,Low calorific value, low current and high motor
efficiency;



Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 7


3:The Rotor is wrapped by
stainless steel jacket tightly with laser full welding, sealing performance, corrosion resistance are much more improved.

Dc 300w 12 Volt Electric Water Pump Automotive Heavy Duty High Flow Volume 8



Water pump Parameter Selection Table


Head (M) Flow (L/H) Power/(W) Efficiency Applicable pipe resistance
0~8 4500~5100 256W ≤40% ≤8m
9~12 3500~4400 256W 40%~48% 9~12m
13~16 2800~3400 256W 48%~54% 13~16m
17~20 2000~2800 290W 44%~50% 17~20m
>20 0~2100 305W <44% 20~24m



DOWNLOAD SPECIFICATION AS FOLLOW

OWP-SH300 water pump.pdf
