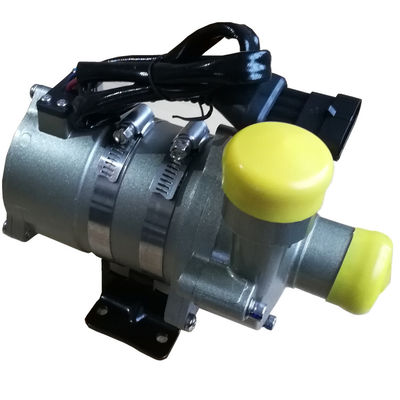

24VDC automotive electric water pump High Pressure with PWM control

24VDC automotive electric water pump High Pressure with PWM control

  • 24VDC automotive electric water pump High Pressure with PWM control
  • 24VDC automotive electric water pump High Pressure with PWM control
24VDC automotive electric water pump High Pressure with PWM control
Product Details:
Place of Origin: China
Brand Name: OWO
Model Number: OWP-7000KL67
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Payment Terms: L/C, T/T,L/C
Contact Now
Detailed Product Description
Operate Voltage: DC 18V-32V Max Flow:: 5500L/H
Max Head:: 20M Rated Flow &lift: 2000L/H,head H ≥18M
Noise: ≤65dB Ip Grade: IP67
Service Life: ≥20000h
High Light:

heavy duty electric water pump

,

electric engine water pump

Brushless DC motor centrifugal pump DC 24V 300W heavy duty electric water pump for electric bus, truck battery and controller cooling with PWM

OWP-7000KL67 300W heavy duty electric water pump for electric bus/truck battery and controller cooling system

24VDC automotive electric water pump High Pressure with PWM control 0

Applications:



1: electric vehicles cooling system

2: engine,battery,controller,AC coolant circulation

3: industrial cooling system

4: BEV bus,PHEV vehicles





No. Items Parameter
1

Medium

temperature range

Max 40% Glycol

-40℃~85℃

2 Flow & Head Flow Q=2000L/H, Head H≥18M
3 Noise ≤65dB
4 Rated Voltage DC24V
5 Operating Voltage DC18~32V
6 Max Current ≤13A
7 Power 300W±10W
8 IP Grade IP67
9 Service life ≥20000h
10 Net Weight 2.2kg



24VDC automotive electric water pump High Pressure with PWM control 1

Advantages of our electric water pump

*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%


*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability


*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.


*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .


*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.


*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.



Structure of electric water pump

24VDC automotive electric water pump High Pressure with PWM control 2



Simulation calculation of hydraulic design of electric pump

24VDC automotive electric water pump High Pressure with PWM control 3

Electric water pump design principle

24VDC automotive electric water pump High Pressure with PWM control 4

Electric water pump design verification - electromagnetic theory design verification

24VDC automotive electric water pump High Pressure with PWM control 5

Design verification of electric pump product design - test verification

24VDC automotive electric water pump High Pressure with PWM control 6

24VDC automotive electric water pump High Pressure with PWM control 7

24VDC automotive electric water pump High Pressure with PWM control 8

24VDC automotive electric water pump High Pressure with PWM control 9
