| MOQ: | 1 sets |
| Delivery Period: | 5days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500sets/day |
Contact us for technical support!!!!

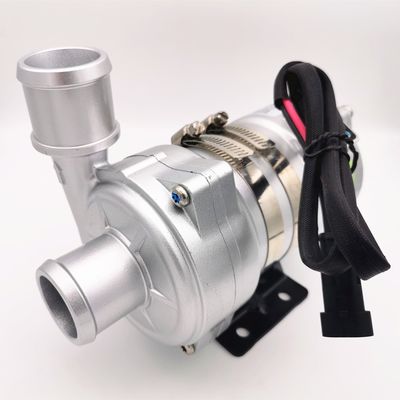

■ Applications
Widely used in hybrid bus, hybrid passenger car, Fuel Cell Vehicle,electric vehicles, trains, ships and other heating and cooling circulation system.
■ Features
◆ Centrifugal pump
◆ Magnetic force transmission
◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆ With wide range operating temperature
◆ PWM signal speed controlling
◆ Diagnostic signal output
◆ With constant flow controlling
◆ Reverse polarity protection
◆ Dry running protection
◆ Over Voltage, over current protection
◆ Overload, over temperature protection
■ Technical description (related parts in contact with the liquid)
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
■ Driving device (Including motor)
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:38mm (1.5 inch)
■ Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
■ Voltage range
Rated 24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.
Medium liquid: liquid mixture (Water with below 60% glycol)
|
Working Voltage |
Rated power |
Rated flow |
Dimensions |
Weight |
| 18V-32V(24V) | 250W | Q=6000L/H, H=8m | 195*90*145 | 2200g |
■ Electrical parameter
Connector model and the corresponding electrical properties (see figure 3):
| AMP282106-1 | 1( Black) | 2( Yellow) | 3(Blue) | 4(Red) |
| (matched Plug AMP282088-1) | GND | Fault feedback | PWM | +24V |
■ PWM character
| Duty Cycle | Description |
Remark: |
| 0%≤duty≤10% | PWM mode (stop) | |
| 11%≤duty≤55% | PWM mode (Min speed) | |
| 51%≤duty≤90% | PWM mode (Linear speed control range) | |
| 91%≤duty≤100% | PWM mode (Max speed) |
| Wire dia. | The longest wire used * |
| 24V | |
| 1.5 mm² | 16m |
| 2.5 mm² | 25m |
| 3 mm² | 31m |
| 4 mm² | 40m |
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
■ Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
■ Performance parameter
■ External dimension
