Product Details:
|
| Voltage: | 18V-32V | Power: | 240w |
|---|---|---|---|
| Head: | 17m | Application: | Water,Submersible,Cooling Circulating System |
| Material: | Cast Aluminium\Stainless Steel | Structure: | Single-stage Pump |
| Theory: | Centrifugal Pump | Product Name: | DC Motor Water Pump |
| High Light: | 240W Electric Water Pump,17M Irrigation Electric Water Pump |
||

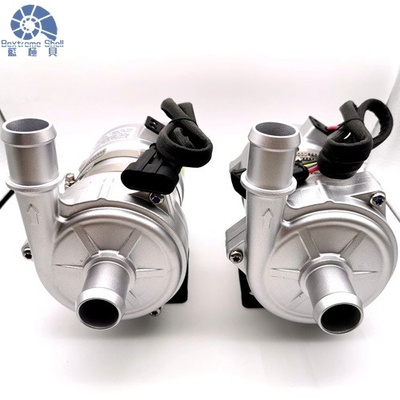

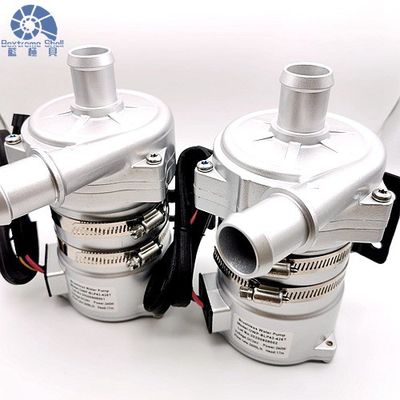

Bextreme Shell OWP-BL43-426T SERIES brushless DC water pump Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump PWM control/Fault diagnosis
This electronic water pump with compact structure,small size,easy installation and high efficiency, is single-stage centrifugal water pumps.The body of the water pump is constructed of high quality die-cast aluminium alloy.BLDC motor inside allows our pumps operate continuously without maintenance and is trusted by our customers for its nice quality long service life and low maintenance cost.
| Duty Cycle | Description |
Remark: 1:PWM duty cycle metrical error ±2% 2:PWM voltage:24VDC, frequency:1 KHz 3: Recommended PWM stop duty cycle:7% 4: Recommended 0% duty as PWM disconnect |
| 0%≤duty≤10% | PWM mode (stop) | |
| 11%≤duty≤55% | PWM mode (Min speed) | |
| 56%≤duty≤90% | PWM mode (Linear speed control range) | |
| 90%≤duty≤100% | PWM mode (max speed limit) |
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
| Wire dia. | The longest wire used * |
| 24V | |
| 1.5 mm² | 16m |
| 2.5 mm² | 25m |
| 3 mm² | 31m |
| 4 mm² | 40m |
|
Working Voltage (VDC) |
Rated power (W) |
Rated flow (L/H) |
Dimensions (mm) |
Weight (g) |
|
18V-32V(24V) |
240W |
Q=2400L/H, H=17m |
193*90*159.5 |
2200g |
Connector model and the corresponding electrical properties(as shown below)
|
AMP282106-1 (matched Plug AMP282088-1) |
1( Black) | 2( Yellow) | 3(Blue) | 4(Red) |
|
GND |
Fault feedback |
PWM |
+24V |
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.
Medium liquid: liquid mixture (Water with below 60% glycol)
■ Attentions1.Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
3.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:25mm (1 inch)
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
