Nozzle Size 1.5inch 24V Automotive Water Pump For Engineer Vechile BEV Bus Cooling System.

Nozzle Size 1.5inch 24V Automotive Water Pump For Engineer Vechile BEV Bus Cooling System

Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump PWM control/Fault diagnosis

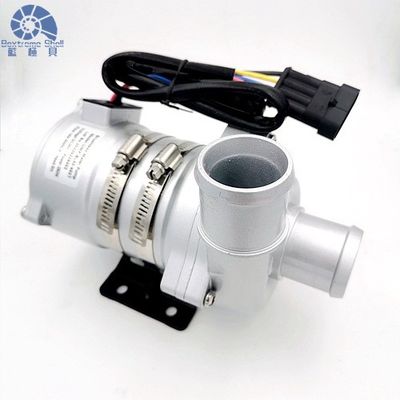

          Bextreme Shell OWP-BL43-450T SERIES brushless DC water pump

Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.

■ Description

OWP-BL43-450T automotive water pump, a powerful and reliable solution for your water pumping needs. With an input voltage range of 18-32V, this pump delivers exceptional performance. Boasting a rated head of 8 meters and a rated flow of 6000 liters per hour, it is designed to efficiently handle demanding applications.

The OWP-BL43-450T features a high-efficiency brushless DC motor, ensuring both low power consumption and superior performance. The magnetic force transmission mechanism further enhances its efficiency, enabling it to operate with minimal energy loss.

With an emphasis on longevity, this water pump incorporates dry running protection, safeguarding it against potential damage. Additionally, its centrifugal pump design allows for efficient fluid transportation.

This pump is designed for versatility, with a wide range of operating temperatures supported. Whether in extremely cold environments or hot climates, the OWP-BL43-450T consistently performs at optimal levels.

Controlling the speed of the pump is made easy with the PWM signal speed control feature, giving you precise control over its operation according to your requirements. Furthermore, this pump incorporates various protective features, including reverse polarity protection, overvoltage and overcurrent protection, overload protection, and over-temperature protection. These safety measures ensure the longevity and reliability of the pump while providing peace of mind.

In summary, the OWP-BL43-450T automotive water pump excels in efficiency, durability, and safety features. With its outstanding performance, lower power consumption, and ability to withstand a wide range of temperatures, it is an excellent choice for a variety of automotive water pumping applications.

■ Selling points

Centrifugal pump

Magnetic force transmission

High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

With wide range operating temperature

PWM signal speed controlling

Diagnostic signal output

With constant flow controlling

Reverse polarity protection

Dry running protection

Over Voltage, over current protection

Overload, over temperature protection


■ Driving device (Including motor)

Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..

Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:38mm (1.5 inch)




■ Technical description (related parts in contact with the liquid)

Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB


Medium liquid: liquid mixture (Water with below 60% glycol)

■ Electrical parameter


Connector model and the corresponding electrical properties(as shown below)

■ PWM charact

Recommended Wire size is (Based on 3% voltage drop)

* The length of the wire means the distance from pump to the battery


 ■ Attentions

1.Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.

2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.

3.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump



■ Performance curve

■ External dimension
