6000LH 250W Electric Water Pump For Electric Vehicle Engineer Vehicle Battery Cooling Thermal management System

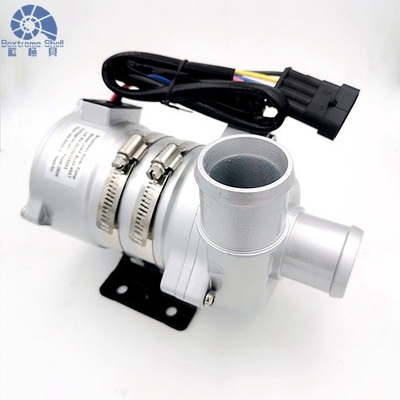

The OWP-BL43-450T automotive electronic water pump with compact structure,small size,easy installation and high efficiency, is  single-stage centrifugal water pumps.The body of the water pump is constructed of high quality die-cast aluminium alloy.BLDC motor inside allows our pumps operate continuously without maintenance and is selected by our customers for its long service life and low maintenance cost.





■ Performance curve





■ Electrical parameter

Working Voltage (VDC)	Rated power (W)	Rated flow (L/H)	Dimensions (mm)	Weight (g)
18V-32V(24V)	250W	Q=6000L/H, H=8m	195*90*145	2200g



Connector model and the corresponding electrical properties(as shown below)

AMP282106-1 (matched Plug AMP282088-1)	1( Black)	2( Yellow)	3(Blue)	4(Red)
	GND	Fault feedback	PWM	+24V







■ PWM character

Duty Cycle	Description	Remark: 1:PWM duty cycle metrical error ±2% 2:PWM voltage:24VDC, frequency:1 KHz 3: Recommended PWM frequency:500Hz 4: Recommended 0% duty as PWM disconnect
0%≤duty≤10%	PWM mode (stop)
10%≤duty≤55%	PWM mode (Min speed)
55%≤duty≤90%	PWM mode (Linear speed control range)
90%≤duty≤100%	PWM mode (max speed limit)

Recommended Wire size is (Based on 3% voltage drop)



* The length of the wire means the distance from pump to the battery



Wire dia.	The longest wire used *
	24V
1.5 mm²	16m
2.5 mm²	25m
3 mm²	31m
4 mm²	40m





■ Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)

Storage temperature: -40℃ to +70℃ (-40°F to +158°F)

(up to 100 ℃, but it will shorten the service life)

Medium liquid: liquid mixture (Water with below 60% glycol)



■ Voltage range

Rated 24V water pump, workable range 18V - 32V

Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.





■ System pressure

-0.2 to 2.5 bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature



■ Driving device (Including motor)

Driving rotor: PPS plastic capsulated magnet

Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless DC motor

Motor wire frame :PPA GF

Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..



Bracket: steel

Bracket hoop: US 304 stainless steel

Waterproof based on IP68 rating (en60529)

Connector model: AMP282106-1 (matched Plug AMP282088-1)

Nozzle diameter:38mm (1.5 inch)



■ Technical description (related parts in contact with the liquid)

Pump head housing: Die casting aluminum alloys

Impeller: PPS+GF

Shield cavity: PPS+GF

Shaft sleeve: carborundum composite materials

Shaft: stainless steel(3CR14) shaft

Magnet housing: PPS plastic capsulation

Seal ring: EPDM

EMC: Grade 3

Noise:≤61dB





■ Product Features

Centrifugal pump

Magnetic force transmission

High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

With wide range operating temperature

PWM signal speed controlling

Diagnostic signal output

With constant flow controlling

Reverse polarity protection

Dry running protection

Over Voltage, over current protection

Overload, over temperature protection





■ External dimension







■ Mounting instruction

OWP-BL43-450T series pumps are centrifugal pumps which require pre-filled,

The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .



1: Pump should not be dry-running, even though it can dry-running for 15 minutes (after 15 minutes dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.



2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.



3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).



4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .



5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )



6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).



7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .





+

■ Attentions

1.Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.



2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.



3.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life



4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump





Get Technical datda please click here.



■ Applications

Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system

Bextreme Shell OWP-BL43-450T automotive electric water pump





Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump PWM control/Fault diagnosis
