|Place of Origin:||China|
|Brand Name:||Bextreme Shell|
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10000 sets per month|
|Product Name:||Bextreme Shell Electric Water Pump||Max Flow:||4500L\H|
|Operate Voltage:||18V-32V||Material:||SUS 304 Stainless Steel|

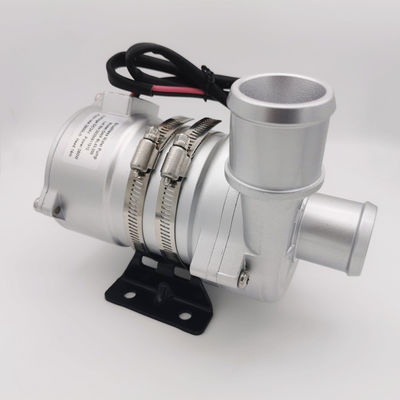

24VDC Electric Water Pump,
Forklift Truck Electric Water Pump,
4500l\H Electric Coolant Pump
Boosting/circulation/Variable-frequency/Low-noise/shield pump/PWM control/ Fault feedback
2800L/H , H=16M
Connector model and the corresponding electrical properties (as shown below)
(matched Plug AMP282080-1)
|Wire thickness||The longest wire used *|
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
Pump head housing: Aluminum alloy
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
Rated 24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.
Medium liquid: pure water, liquid mixture (Water with below 60% glycol)
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: Steel base
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282104-1 (matched Plug AMP282080-1)
Nozzle diameter:40mm (1.5 inch)
1.Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
3.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
OWP-BL43-200 series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on
1: Pump should not be dry-running, even though it can dry-running for 30 seconds (after 30 seconds dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted When installed vertically, the outlet port should be upward .
5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller.
6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees
7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
