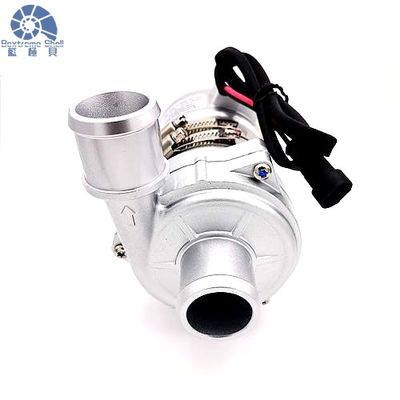

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling
38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling
38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling

Large Image :  38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling

Product Details:
Place of Origin: China
Brand Name: Bextreme Shell
Model Number: OWP-BL43-200
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: PE bag+carton
Delivery Time: 5-10days
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per month

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling

Description
Product Name: Automotive Water Pump Rate Power: 250W
Rate Flow: 2800L\H Max Lift: 23M
Colour: Silver Usage: Viscous Media And Liquid
Structure: Centrifugal Pump Material: Cast Iron/Stainless Steel

OWP-BL43-200 SERIES 38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 0



Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.



The OWP-BL43-200 automotive water pump: a powerful and efficient solution for your pumping needs. With a wide input voltage range of 18-32V (24V), this centrifugal pump offers a rated head of 16M and a flow rate of 2800 L/H. Its high-efficiency brushless DC motor ensures low power consumption and a long service life.



Designed with multiple protective features like dry running protection, reverse polarity protection, overvoltage and overcurrent protection, and overload and over-temperature protection, this water pump prioritizes safety and reliability. Its magnetic force transmission mechanism further enhances its performance and efficiency.



The OWP-BL43-200 water pump is engineered to operate seamlessly in a wide range of temperatures. With its 40mm (1.5inch) nozzle size and constant flow controlling capability, it provides consistent and controlled water flow. Choose the OWP-BL43-200 for its reliability, efficiency, and extended lifespan for your automotive water pumping needs.



Product features

  • Centrifugal pump
  • Magnetic force transmission
  • High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
  • With wide range operating temperature
  • PWM signal speed controlling(optional)
  • Diagnostic signal output(optional)
  • With constant flow controlling
  • Reverse polarity protection
  • Dry running protection
  • Over Voltage, over current protection
  • Overload, over temperature protection



Performance Curve

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 1

Medium liquid: liquid mixture (Water with below 60% glycol)



Electrical parameter



Working Voltage

(VDC)

Rated power

Rated flow

(L/H)

Dimensions

(mm)

Weight

(g)







18V-32V(24V)







250W



2800L/H , H=16M







185*90*155







1950g







Connector model and the corresponding electrical properties(The right picture)

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 2



AMP282104-1

(matched Plug AMP282080-1)

1 2
+24V DC GND





Wire thickness The longest wire used *
  24V
1.5 mm² 16m
2.5 mm² 25m
3 mm² 31m
4 mm² 40m

Recommended Wire size is (Based on 3% voltage drop)

* The length of the wire means the distance from pump to the battery



Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)

Storage temperature: -40℃ to +70℃ (-40°F to +158°F)(up to 100 ℃, but it will shorten the service life)



System pressure

-0.2 to 2.5 bar ( 100℃ (212°F).The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.



Voltage range

Rated 24V water pump, workable range 18V - 32VAlthough the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.





External dimension

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 3

38mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 438mm Nozzle Flow 4500L/H Automotive BLDC Water Pump For Truck Battery Cooling 5



Attentions

1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.



2. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.



3. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life.



4. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump.
