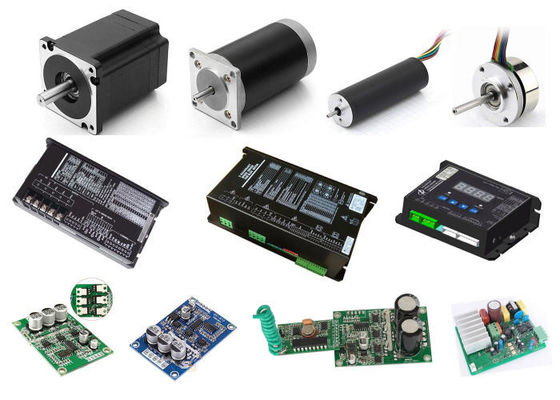

Hall sensor 110V 220V 12V 24v Brushless Dc Motor Controller Pwm

DK Series brushless DC motor

NEMA 09   NEMA 11   NEMA 13  NEMA 17  NEMA 23   NEMA 34  brushless dc motor

Model:	OD   (mm)	Phase resistance (Ω)	Inductance (Mh)	Rated voltage(V)	Rated speed (rpm)	Rated torque (Nm)	Photo
DK22BL	22	11.8	4.2	24	3500	0.022
DK28BL	28	4.67	2.2	24	3100	0.05
DK33BL	33	14.2	7	24	4500	0.022
DK42BL	42	0.48	0.44	24	3000	0.36
DK42RBL	42	0.71	0.86	24	4000	0.15
DK45BL	45	0.61	0.47	24	4800	0.13
DK57RBL	57	0.35	1	36	4000	0.42
DK57RHBL	57	0.2	0.25	36	4000	0.8
DK57BL	57	0.5	0.6	36	3000	0.6
DK86BL	86	0.16	0.03	48	3000	2.1

BLSD Series brushless DC motor speed driver / speed controller

 DC12V,DC24V,DC36V,DC48V,DC72V,DC155V,DC310V ,AC110,AC 220V brushless motor driver

BLSD 24 05 DC(AC,WDC) – 2Q – S (N,H,HV)

BLSD: brushless DC motor speed driver

24: operating voltage 24V

05: peak current limit  5A

DC: DC power input

AC:AC power input

WDC:wide range input voltage

2Q: 2-Quadrant driving mode

S:S series (small size and fixed parameter)

N:N series (normal size and variable parameters)

H:H series (high current and variable parameters)

HV: HV series (high voltage motor driver)

Model	Operatable Voltage (V)	Peak  current  limit   (A)	Description	Sensor	Photo
BLSD XXXX DC – 2Q – S	DC:12V,24V,36V,48V	5A,10A,15A,20A	compact size with fixed parameter	Hall
BLSD XXXX DC – 2Q – N	DC:12V,24V,36V,48V	10A,20A,30A	normal size and variable parameters	Hall
BLSD XXXX DC/WDC – 2Q – H	DC:24V,36V,48V WDC:15V-55V	30A.50A,75A,100A	high current and variable parameters	Hall
BLSD XXXX DC/AC – 2Q – HV	AC:110V(45-140V),220V(45-275V) DC:155V(60-195V),310V(60-385V)	4A,8A,16A,24A	high voltage motor driver	Hall

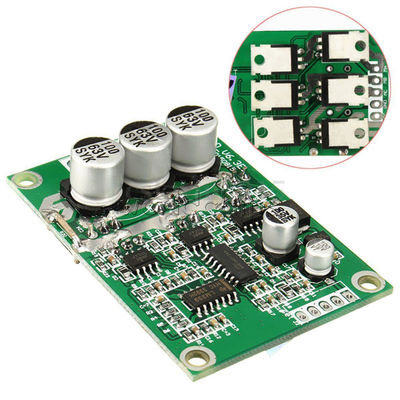

JYQD Series brushless DC motor speed driver / speed controller board

DC12V-36V, 15A,20A,500W,700W brushless motor driver board

Model	Operatable Voltage (V)	Peak current limit (A)	Description	Sensor	Photo
JYQD-V7.3E2	DC 12V-36V	≤15A	opretable voltage:DC 12V-36V, output power :500W	Hall
JYQD-V7.3E1	DC 12V-36V	≤15A	opretable voltage:DC 12V-36V, output power :500W	Hall
JYQD-V7.5E	DC 12V-36V	≤20A	opretable voltage:DC 12V-36V, output power :700W	Hall
JYQD-V6.5	DC 12V-36V	≤20A	opretable voltage:DC 12V-36V, output power :700Wv	Sensorless
JYQD-V6.3E1	DC 12V-36V	≤15A	opretable voltage:DC 12V-36V, output power :500W	Sensorless

please contact us for more details.
