15A 24 Volt Sensorless BLDC Driver Board Speed Control

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V6.3E2
Working Voltage:
24V
Working Current:
15A
Speed Control:
0-5V
Speed Pulse Signal Output:
Yes
O.V / L.V Protection:
Yes
Color:
Green
Highlight:

24 volt bldc motor driver

,

24v brushless dc motor driver

,

sensorless brushless dc motor drivers

Product Description
Product Description

JYQD-V6.3E2 is very compact size BLDC motor driver board with necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.

Its widely applied by the worldwide clients almost for 8 years,its mature and stable design are competent for many applications.

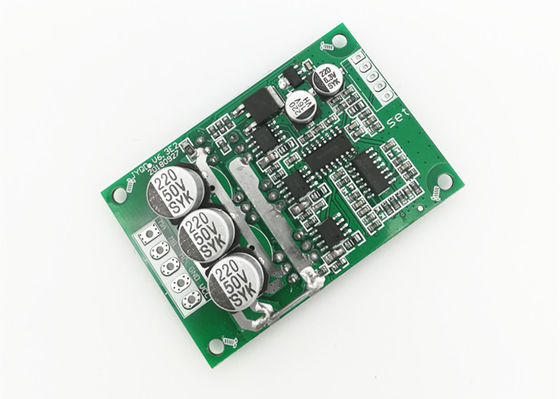

15A 24 Volt Sensorless BLDC Driver Board Speed Control 0
MODEL NO.
JYQD-V6.3E2
OPERATING TEMPERATURE
-20—85℃
INPUT VOLTAGE
12-36VDC
MAX WORKING CURRENT
15A
PWM SPEED REGULATION
PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION
0-5V

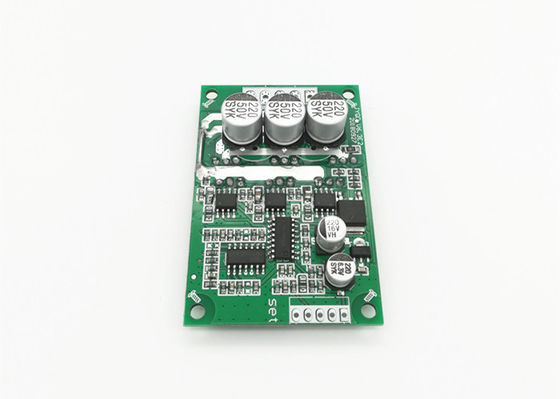

15A 24 Volt Sensorless BLDC Driver Board Speed Control 1
15A 24 Volt Sensorless BLDC Driver Board Speed Control 2
15A 24 Volt Sensorless BLDC Driver Board Speed Control 3
Application guidelines

1: Confirm that the voltage and power paraparameters of the motor not exceed the range as specified.

2:This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (contact us for guidance)

  •

3:JYQD-V6.3E2 is driver board without housing and heatsink, it can drive the BLDC motor below 100W without any heatsink,but needs normal ventilation.
4:The "5V" pin on the driver board is forbidden to connect with external power equipment.it is only suit for external potentiometer or switch for speed adjustment,reversing and singnal swtiching operation.

5: Please take note that JYQD-V6.3E2 driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.


15A 24 Volt Sensorless BLDC Driver Board Speed Control 4
15A 24 Volt Sensorless BLDC Driver Board Speed Control 5
Description of wiring

1. Control port

5V — Driver board internal output voltage, for external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level is Forward direction,connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1V -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1K-10KHz; Duty cycle 0-100%
Signal—Speed pulse signal output
GND—Used for Driver board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C


GND----DC-

VCC----DC +


3:Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,Power port distance:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Overall dimensions

Board size customizable to your requests.
15A 24 Volt Sensorless BLDC Driver Board Speed Control 6


Please contact us if you need technical support.

OEM,ODM service are available!
Tags:

brushless motor driver,

bldc motor driver,

24 volt bldc motor driver
