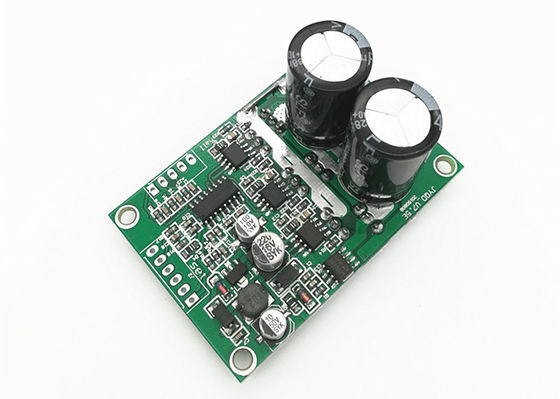

JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.5E
Working Voltage:
36-72VDC
Working Current:
15A
PWM Speed Control:
Duty Cycle 0-100% (1-20KHZ)
Speed Pulse Signal Output:
YES
ANALOG VOLTAGE SPEED REGULATION (V):
0 - 5V
OPERATING TEMPERATURE(℃):
-20—85℃
Highlight:

JYQD V7.5E

,

bldc mosfet driver

,

bldc motor mosfet driver

Product Description
JYQD-V7.5E,36-72V DC,15A working current BLDC motor driver for Hall effect BLDC motor

MODEL OPERATING TEMPERATURE(℃) OPERATING VOLTAGE(V) MAX CURRENT (A)

· CONTINUOUS OPERATING CURRENT

(A)

PWM SPEED REGULATION

(1-20KHZ)

 ANALOG VOLTAGE SPEED REGULATION (V) Speed pulse signal output
JYQD-V7.5E -20—85℃ DC36V-72V 16A 15A

Duty cycle

0-100%

 0-5V √

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4.  The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation






JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 0
Wiring diagram
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 1
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port

MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Dimensional drawing
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 2





DOWNLOAD JYQD-V7.5E USER MANUAL
Tags:

brushless motor driver,

bldc motor driver,

JYQD V7.5E

Recommended Products
Hall sensor 110V 220V 12V 24v Brushless Dc Motor Controller Pwm Video

Hall sensor 110V 220V 12V 24v Brushless Dc Motor Controller Pwm

Contact Now
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board Video

JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board

Contact Now
12V 24V 36VDC 15A 500W JYQD-V7.3E3-H BLDC Driver Board Video

12V 24V 36VDC 15A 500W JYQD-V7.3E3-H BLDC Driver Board

Contact Now
Self-learning Motor Driver Working Voltage 11.5-70VDC Can Be Configurated By Serial Port

Self-learning Motor Driver Working Voltage 11.5-70VDC Can Be Configurated By Serial Port

Contact Now
Bextreme Shell JYQD-V8.8B 3 Phase Motor Driver 110VAC /220VAC Input Sensorless Bldc Driver Board Video

Bextreme Shell JYQD-V8.8B 3 Phase Motor Driver 110VAC /220VAC Input Sensorless Bldc Driver Board

Contact Now
15A 24 Volt Sensorless BLDC Driver Board Speed Control Video

15A 24 Volt Sensorless BLDC Driver Board Speed Control

Contact Now
Induction Control Motor Speed Controller BLDC Driver Board 24V DC Video

Induction Control Motor Speed Controller BLDC Driver Board 24V DC

Contact Now
High Voltage JYQD-V8.6 Sensorless Brushless BLDC Driver Board Control Video

High Voltage JYQD-V8.6 Sensorless Brushless BLDC Driver Board Control

Contact Now
JYQD-V8.3B sensorless 0 to 5V 3 Phase 150w BLDC Driver Board Video

JYQD-V8.3B sensorless 0 to 5V 3 Phase 150w BLDC Driver Board

Contact Now
JYQD_V8.3B Sensorless Non Inductive Brushless Motor Driver Module Controller Video

JYQD_V8.3B Sensorless Non Inductive Brushless Motor Driver Module Controller

Contact Now
12v To 36v 500w Brushless Dc Motor Controller With Connector Wires Heatsink Video

12v To 36v 500w Brushless Dc Motor Controller With Connector Wires Heatsink

Contact Now
products
PRODUCTS DETAILS
Products

BLDC Driver Board

BLDC Motor Driver IC

3 Phase BLDC Motor Driver

Automotive Electric Water Pump

BLDC Centrifugal Fan

BLDC Water Pump

Brushless DC Motor

Electric Linear Actuator

Deuterium Lamp Power Supply

BLDC Gear Motor

Gear Reduction Motor

Permanent Magnet Stepper Motor

Hybrid Stepper Motor

BLDC Fan Driver
name
  • name
  • name
  • name
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board
MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.5E
Working Voltage:
36-72VDC
Working Current:
15A
PWM Speed Control:
Duty Cycle 0-100% (1-20KHZ)
Speed Pulse Signal Output:
YES
ANALOG VOLTAGE SPEED REGULATION (V):
0 - 5V
OPERATING TEMPERATURE(℃):
-20—85℃
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
PE bag+ carton
Delivery Time:
5-10 days
Payment Terms:
T/T,L/C,Paypal
Supply Ability:
1000sets/day
Highlight

JYQD V7.5E

,

bldc mosfet driver

,

bldc motor mosfet driver

Product Description
JYQD-V7.5E,36-72V DC,15A working current BLDC motor driver for Hall effect BLDC motor

MODEL OPERATING TEMPERATURE(℃) OPERATING VOLTAGE(V) MAX CURRENT (A)

· CONTINUOUS OPERATING CURRENT

(A)

PWM SPEED REGULATION

(1-20KHZ)

 ANALOG VOLTAGE SPEED REGULATION (V) Speed pulse signal output
JYQD-V7.5E -20—85℃ DC36V-72V 16A 15A

Duty cycle

0-100%

 0-5V √

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4.  The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation






JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 0
Wiring diagram
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 1
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port

MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Dimensional drawing
JYQD - V7.5E 36 to 72VDC Three Phase Mosfet Motor BLDC Driver Board 2





DOWNLOAD JYQD-V7.5E USER MANUAL
