Three Phase Brushless Dc Motor Driver
  • name
  • name
  • name
  • name
  • name
  • name

Three Phase Brushless Dc Motor Driver

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V6.5E
Working Voltage:
36-72VDC
Working Current:
15A
PWM Speed Control:
Duty Cycle 0-100% (1-20KHZ)
Speed Pulse Signal Output:
YES
ANALOG VOLTAGE SPEED REGULATION (V):
0 - 5V
OPERATING TEMPERATURE(℃):
-20—85℃
Highlight:

JYQD V6.5E bldc driver

,

Three Phase brushless dc motor driver

,

bldc 3 phase motor controller

Product Description
Product Description

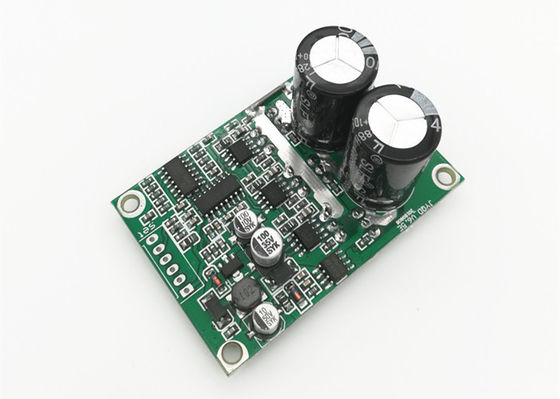

JYQD-V6.5E is very compact size BLDC motor driver board with necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.

Its widely applied by the worldwide clients almost for 8 years,its mature and stable design are competent for many applications.
Three Phase Brushless Dc Motor Driver 0
MODEL NO.
JYQD-V6.5E
OPERATING TEMPERATURE
-20—85℃
INPUT VOLTAGE
36-72VDC
MAX WORKING CURRENT
15A
PWM SPEED REGULATION
PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION
0-5V
Three Phase Brushless Dc Motor Driver 1
Three Phase Brushless Dc Motor Driver 2
Three Phase Brushless Dc Motor Driver 3
Application guidelines

1: Confirm that the voltage and power paraparameters of the motor not exceed the range as specified.

2:This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (contact us for guidance)

  •

3:JYQD-V6.5E is driver board without housing and heatsink, it can drive the BLDC motor below 70W without any heatsink,but needs normal ventilation.
4:The "5V" pin on the driver board is forbidden to connect with external power equipment.it is only suit for external potentiometer or switch for speed adjustment,reversing and singnal swtiching operation.

5: Please take note that JYQD-V6.5E driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.


Three Phase Brushless Dc Motor Driver 4
Three Phase Brushless Dc Motor Driver 5
Description of wiring

1. Control port

5V — Driver board internal output voltage, for external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level is Forward direction,connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1V -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1K-10KHz; Duty cycle 0-100%
Signal—Speed pulse signal output
GND—Used for Driver board internal control
Torque— For starting torque adjustment use, make sure remove the resistors for fixed-torque on the board before use this function (contact us if you want use this function before using)
2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C


GND----DC-

VCC----DC +


3:Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,Power port distance:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Overall dimensions

Board size customizable to your requests.
Three Phase Brushless Dc Motor Driver 6


Please contact us if you need technical support.

OEM,ODM service are available!
Tags:

brushless motor driver,

bldc motor driver,

JYQD V6.5E bldc driver
