PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor

PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor
PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor

Large Image :  PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V6.5E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+carton
Delivery Time: 5-10 days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 1000 sets per day

PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor

Description
Product Name: 36-72V Sensorless Motor Driver Board Max Current: 16A
Operate Voltage: 36V-72V Speed Control: Yes
Color: Green
High Light:

DC Motor Driver Board 72V

,

Sensorless DC Motor Driver Board

,

PWM Control BLDC Motor Board

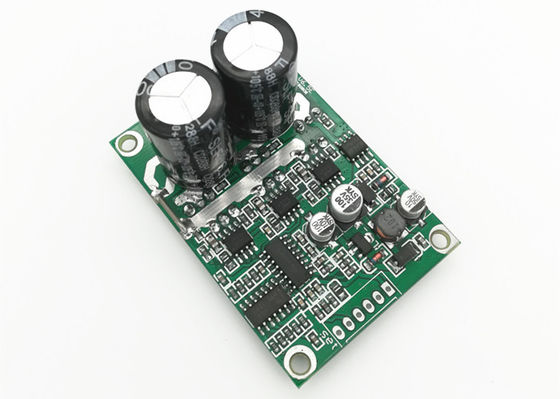

JYQD-V6.5E 36V-72V PWM Speed Control Sensorless Brushless DC Motor Driver Board

PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor 0

JYQD-V 6 series is a driver board suitable for three-phase brushless DC motors (without Hall sensor), its structure is complete but functional, stable working and long service life. It has the functions of PWM speed regulation, high and low voltage protection and speed pulse signal output. Widely used in fans, automatic sorting lines, blowers and electronic water pumps. We provide customized service and technical support.



Parameter

Model number JYQD-V6.5E
Operating temp. -20—85℃
Operating voltage 36V-72V
Max current 16A
Cont.working current 15A
PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection YES
Speed pulse signal output YES







Wiring diagram

PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor 1


1.Control port





5V -----Driver board internal output voltage



Signal ---- Motor speed pulse signal output port, 5V pulse signal.



Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.



VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%



GND—Used for Drive board internal control



Torque— For starting torque adjustment use, make sure remove the resistors for fixed-torque on the board before use this function (contact us if you want use this function before using)









2.Power port



MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

GND----DC-

VCC----DC +



3.Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.



4.Control port distance: 2.54mm,Power port distance:3.96 mm



5.Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.





Application notes

1.Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.


2.This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)



3.Please take note that JYQD-V6.5E driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.



4.The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.



5.The “Signal” terminal on the JYQD-V6.5E driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.



6.JYQD-V6.5E driver board is bare board without housing and heatsink. If the power of the motor below 100W ,its no need to add heatsink, It only needed to ensure normal ventilation and well insulation. If the power of the motor more than 100W, it must add heatsink like the diagram as below.





Overall diamensions

PWM Speed Regulation Brushless DC Motor Controller For Sensorless Motor 2









FAQ

1.Q:Can I place a sample order?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable



2.What about the lead time

It is spending 30 days generally after you making the payment.



3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.



4. How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc



5. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
