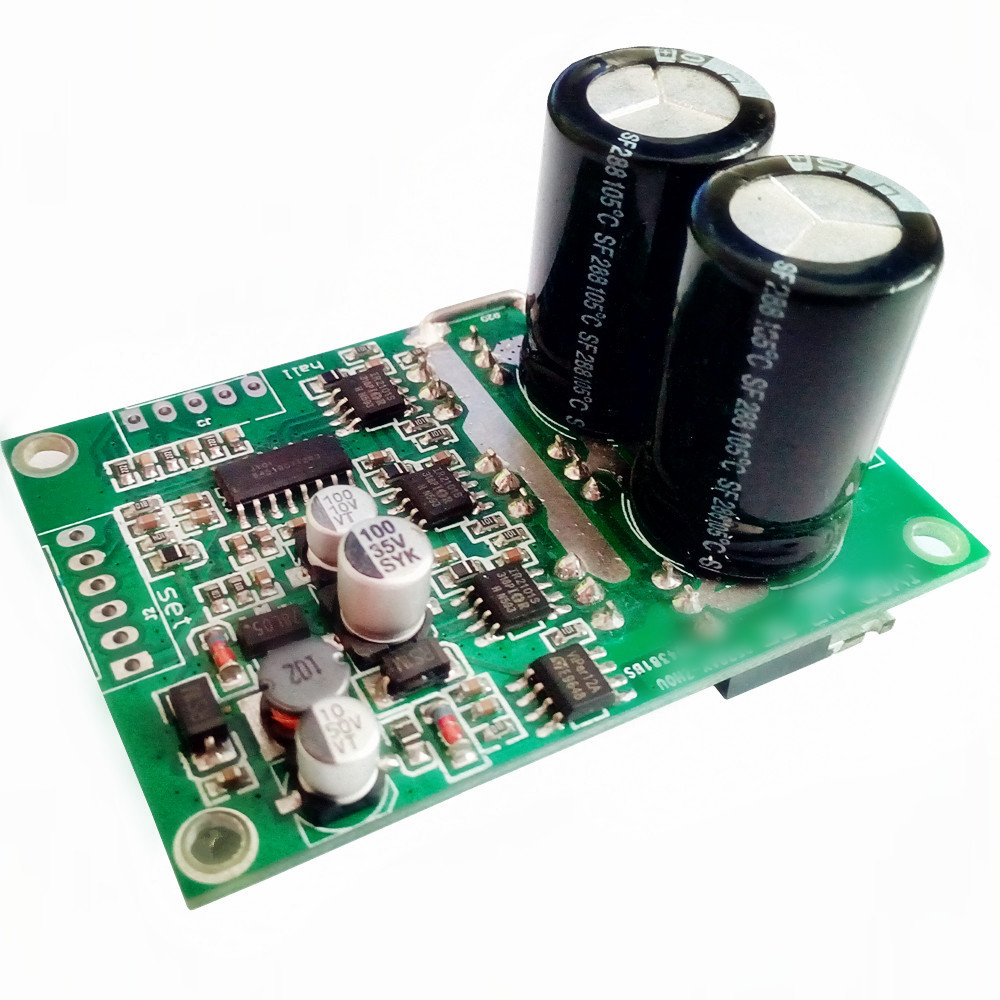

JYQD-V7.5E 12V-36V brushless DC motor driver
Specifications
| Operating Voltage | DC 12V-36V |
| Operating current | ≤20A |
| Output power | ≤700W |
| Speed control | 0.1V-5V or PWM input |
| Operating temperature | -40-85℃ |
| Operating humidity | ≤90% |
| Protection | Overload protection, locked-rotor protection, over-current protection |
| Functions | Speed pulse signal output, soft reversing (485,CAN port optional) |
| Overall dimension | 63X42.5X33mm (L*W*H) |
| Net weight | 38g |
| Optional component |
Speed regulating potentiometer external 5 digit tachometer |
ATTENTION:
1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.
3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.
4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.
Wiring instructions
Mounting dimension
Video
Video
Video
Video
Video
Video
Video
|
|
