DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors

DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors

MOQ: 1 set
Price: Negotiable
Standard Packaging: Carton+packing foams
Delivery Period: 5-30days
Payment Method: T/T
Supply Capacity: 1000 pcs per day
Detail Information
Place of Origin
China
Brand Name
OWO
Model Number
JYQD-V7.5E
Operating Voltage:
36V
Operating Current:
15A
Sensor:
Hall Sensor
Size:
63X42.5X33mm (L*W*H)
Speed Control:
0.1V-5V Or PWM Input
Application:
Fan,pump,scooter,bldc Motor
High Light:

brushless motor driver

,

3 phase motor driver

Product Description

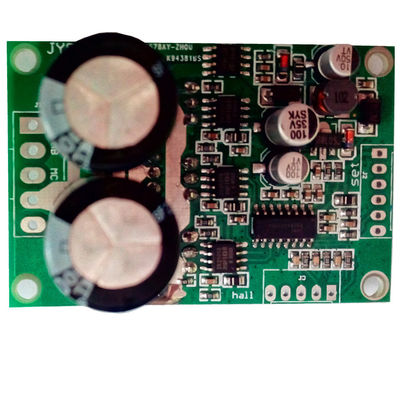

36V 15A 700W brushless DC motor driver with Hall sensor for electric scooter

JYQD-V7.5E 12V-36V brushless DC motor driver





Specifications

Operating Voltage DC 36V
Operating current ≤20A
Output power ≤700W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X33mm (L*W*H)
Net weight 38g
Optional component

Speed regulating potentiometer

external 5 digit tachometer


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors


2:please make sure to add heat sink when the output power more than 60W.


When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.







Wiring instructions

DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 0

DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 1









Mounting dimension



DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 2



































products
PRODUCTS DETAILS
DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors
MOQ: 1 set
Price: Negotiable
Standard Packaging: Carton+packing foams
Delivery Period: 5-30days
Payment Method: T/T
Supply Capacity: 1000 pcs per day
Detail Information
Place of Origin
China
Brand Name
OWO
Model Number
JYQD-V7.5E
Operating Voltage:
36V
Operating Current:
15A
Sensor:
Hall Sensor
Size:
63X42.5X33mm (L*W*H)
Speed Control:
0.1V-5V Or PWM Input
Application:
Fan,pump,scooter,bldc Motor
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
Carton+packing foams
Delivery Time:
5-30days
Payment Terms:
T/T
Supply Ability:
1000 pcs per day
High Light

brushless motor driver

,

3 phase motor driver

Product Description



36V 15A 700W brushless DC motor driver with Hall sensor for electric scooter

JYQD-V7.5E 12V-36V brushless DC motor driver





Specifications

Operating Voltage DC 36V
Operating current ≤20A
Output power ≤700W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X33mm (L*W*H)
Net weight 38g
Optional component

Speed regulating potentiometer

external 5 digit tachometer


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors


2:please make sure to add heat sink when the output power more than 60W.


When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.







Wiring instructions

DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 0

DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 1









Mounting dimension



DC 36V 15A 700W Electronic Speed Controller Circuit For Brushless Motors 2
