|Operating Voltage:||12V-36V||Operating Current:||1-15A|
|Sensor:||Hall Sensor||Size:||63X42.5X17mm (L*W*H)|
|Speed Control:||0.1V-5V Or PWM Input||Net Weight:||30g|

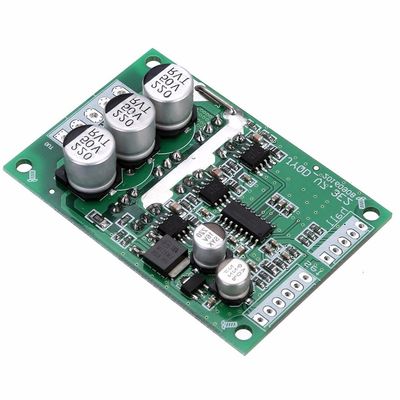

brushless motor driver,
3 phase motor driver
1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.
3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.
4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.
|Operating Voltage||DC 12V-36V|
|Speed control||0.1V-5V or PWM input|
|Protection||Overload protection, locked-rotor protection, over-current protection|
|Functions||Speed pulse signal output, soft reversing (485,CAN port optional)|
|Overall dimension||63X42.5X17mm (L*W*H)|
Speed regulating potentiometer
external 5 digit tachometer
