12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor

12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor
12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor 12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor

Large Image :  12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V7.3E2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T
Supply Ability: 1000 pcs per day

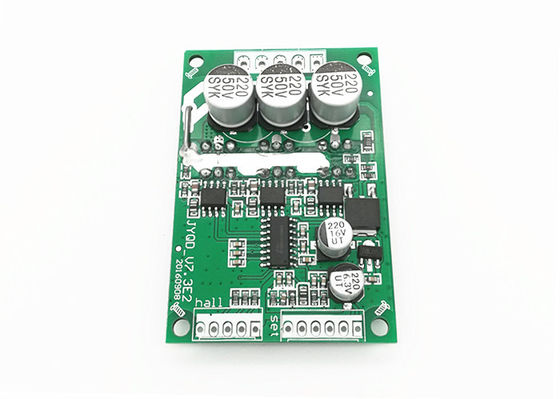

12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor

Description
Operating Voltage: 12V-36V Operating Current: 1-15A
Sensor: Hall Sensor Size: 63X42.5X17mm (L*W*H)
Speed Control: 0.1V-5V Or PWM Input Net Weight: 55g
High Light:

bldc motor driver

,

3 phase motor driver



12V,24V,36V,5A,10A,15A 500W brushless DC motor driver,Hall sensor,brushless DC motor speed controller

JYQD-V7.3E2 12V-36V brushless DC motor driver circuit board with heatsink


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.


When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.



Specifications

Operating Voltage DC 12V-36V
Operating current ≤15A
Output power ≤500W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X17mm (L*W*H)
Net weight 55 g
Optional component

Speed regulating potentiometer

external 5 digit tachometer





Wiring instructions

12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor 0









Mounting dimension

12V - 36V Brushless DC Motor Driver Board JY01 IC JYQD-V7.3E2 Hall Sensor 1
