Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output

Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output

  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
  •  Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
 Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output
Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V6.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Working Voltage: DC12-24V Working Current: 2A
Speed Control: PWM Or 0-5V Speed Pulse Signal Output: Yes
Color: Green Model Number: JYQD-V6.7
High Light:

bldc motor driver

,

3 phase motor driver

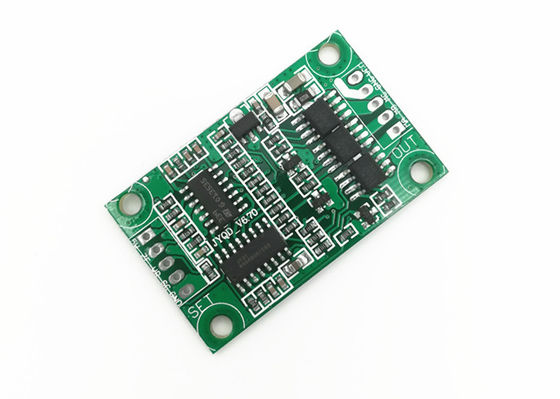

JYQD-V6.7 BLDC motor driver for sensorless BLDC motor 12-24VDC 2A current​

Model number :JYQD-V6.7
Operating temp.: -20—85℃
Operating voltage:12-24VDC
Cont.working current: 2A
PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation :0-5V
Speed pulse signal output :YES

Application notes:

1. Please confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.


2. This BLDC motor driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)


3. JYQD-V6.7 BLDC motor driver board is bare board without housing and heatsink. If the power of the motor below 36W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation.





Wiring diagram
 Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output 0


5V -----Driver board internal output voltage
SC ---- Motor speed pulse signal output port, 5V pulse signal.

1. Control port
Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND----DC-
VCC----DC +

3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

4.Control port distance: 2.54mm,Power port distance:2.54 mm

5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Dimensional drawing
 Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output 1
 Brushless DC Motor Driver 12-24V DC 2A Current Speed Pulse Signal Output 2

DOWNLOAD JYQD-V6.7 USER MANUAL
