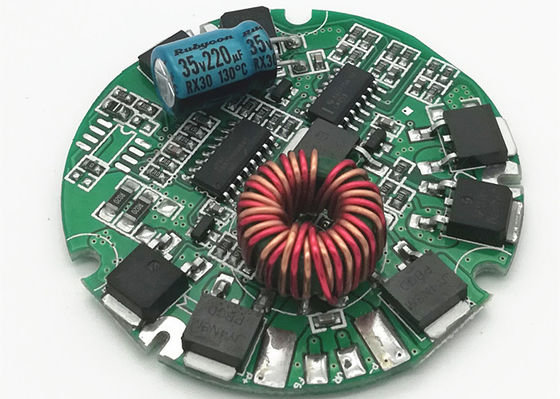

12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump

12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump

  • 12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump
12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump
Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-N1.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Working Voltage: 12-36V Working Current: 4 A
Products Name: Electric Water Pump Controller EMC: Level 3
Speed Pulse Signal Output: Yes Operating Temp.: -20 - 85℃
High Light:

bldc motor driver

,

brushless motor driver

12-36V DC JYQD-N1.1 BLDC motor driver for brushless water pump



(For Brushless Sensorless DC motor )
Model number JYQD-N1.1
Operating temp. -20—85℃
Operating voltage 12V-36V
Max current 4A
Cont.working current2 3A
· PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection YES
Speed pulse signal output YES


12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump 0

Wiring diagram

P- ---- DC -
VR--- PWM speed regulation
FG----speed pulse signal output
P+----DC+
U ----motor phase U
V ---- motor phase V
W---- motor phase W



12-36V DC BLDC Water Pump Controller For Automobile Electric Water Pump 1
