JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller

JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller

JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller
JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller
JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller
Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V6.3N2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Working Voltage: 24V Working Current: 3 A
Products Name: BLDC Water Pump Controller PWM Speed Control: YES
Dry-running Protection: Yes EMC Treatment: Yes
High Light:

JYQD Driver Boards

,

Water Pump BLDC Driver Board

,

JYQD V6.3N2

24V DC JYQD-V6.3N2 BLDC motor driver for brushless electric water pump




Model number :JYQD-V6.3N2
Operating voltage :24V
Max current :3A
Cont.working current: 2A
PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection :YES
Speed pulse signal output :YES

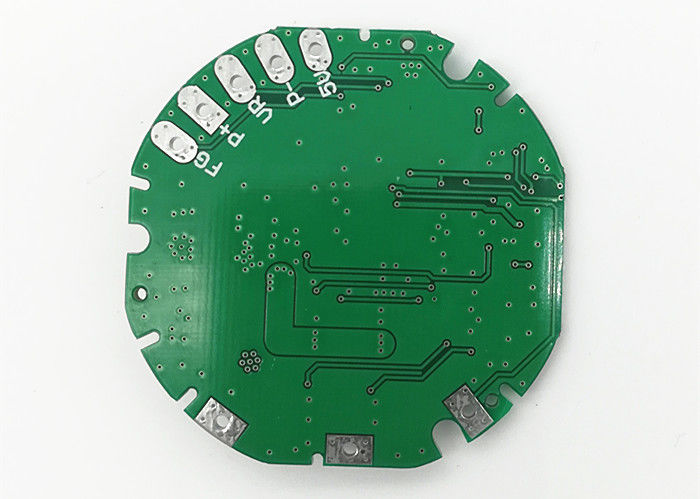

Wiring diagram

5V -----0-5V Analog voltage speed regulation
P- ---- DC -
VR--- PWM  speed regulation
P+----DC+
FG----speed pulse signal output
U ----motor phase U
V ---- motor phase V
W---- motor phase W



JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller 0

Applications:

BLDC motor water pump,electronic water pump,brushless DC water pump,
JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller 1JYQD-V6.3N2 24V 3A Water Pump BLDC Driver Board Controller 2
