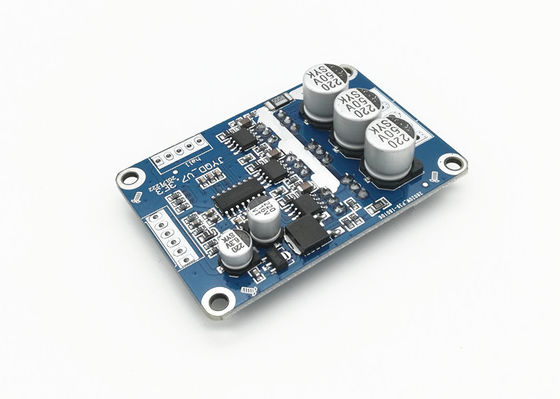

Brushless DC Motor Driver Speed Pulse Signal Output Duty Cycle 0-100%

Brushless DC Motor Driver Speed Pulse Signal Output Duty Cycle 0-100%

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.3E3
Working Voltage:
12VDC
Working Current:
<15A
PWM Speed Control:
Yes
Speed Pulse Signal Output:
Yes
Application:
BLDC Cooling Fan
Shape:
Rectangle
High Light:

bldc motor driver

,

brushless motor driver

Product Description
12VDC 500W PWM speed control Hall effect BLDC motor driver JYQD-V7.3E3

MODEL:JYQD-V7.3E3
OPERATING TEMPERATURE(℃) : -20---85℃
OPERATING VOLTAGE(V): 12V
Max Current:15A
PWM SPEED REGULATION:(1-20KHZ)Duty cycle 0-100%
ANALOG VOLTAGE SPEED REGULATION (V):0.1V-5V
Speed pulse signal output:Include

Applications:
BLDC fan
Brushless DC motor
BLDC cooling fan
BLDC lawn mower
BLDC centrifugal blower


Wiring diagram
 Brushless DC Motor Driver Speed Pulse Signal Output Duty Cycle 0-100% 0
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +



3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

Dimensional drawing
 Brushless DC Motor Driver Speed Pulse Signal Output Duty Cycle 0-100% 1

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation















 Brushless DC Motor Driver Speed Pulse Signal Output Duty Cycle 0-100% 2
DOWNLOAD JYQD-V7.3E3 USER MANUAL
