24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control
  • name
  • name

24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.3E2
Working Voltage:
24VDC
Working Current:
15A
PWM Speed Control:
YES
ANALOG VOLTAGE SPEED REGULATION:
0-5V
Speed Pulse Signal Output:
Yes
Application:
Hall Effect Brushless Dc Motor
Highlight:

bldc motor driver

,

3 phase motor driver

Product Description

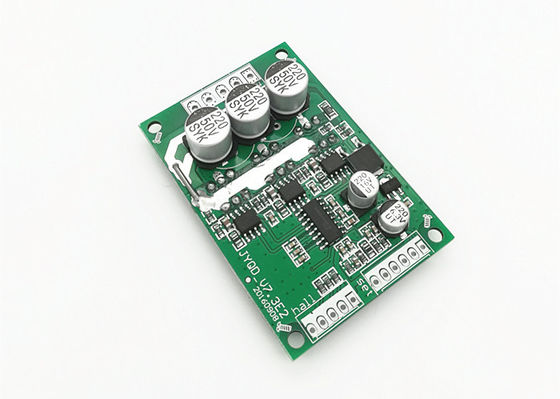

24VDC Max power 500W control JYQD-V7.3E2 Hall effect BLDC motor driver board​


MODEL:JYQD-V7.3E2

OPERATING VOLTAGE(V):24VDC

MAX CURRENT (A):15A

ANALOG VOLTAGE SPEED REGULATION (V):0-5V

Speed pulse signal output:YES




Application guidelines

1. Please confirm that the voltage and power parameters of the motor not exceed the range as specified.

2. This BLDC  motor driver applicable to hall effect brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.

3. JYQD-V7.3E2 is the driver board without housing and heatsink, it can drive the BLDC motor below 100 watt without any heatsink, but needs normal ventilation.please add heatsink if the power more than 100W.

4.  Please do pay attention to the insulation between the BLDC motor driver MOSFET and the heatsink or the installation plate.
24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control 0



Wiring diagram
24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control 1

1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.
Signal— Speed pulse signal output
GND—Used for Driver board internal control

2. Power port
MA ----BLDC motor phase A
MB ---- BLDC motor phase B
MC---- BLDC motor phase C
P- ----Power DC-
P+----Power DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control 2
Dimensional drawing
24V Brushless DC Motor Driver Hall Effect High Efficiency PWM Speed Control 3


DOWNLOAD JYQD-V7.3E2 USER MANUAL
