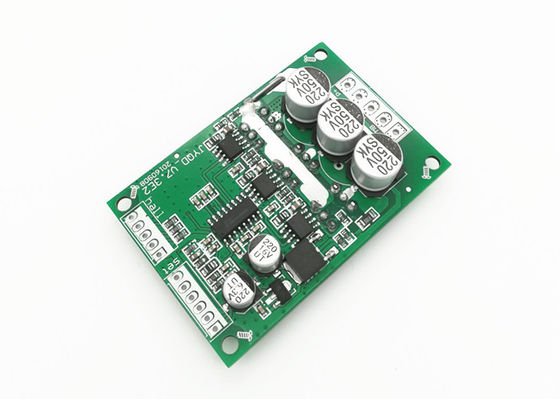

JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm

Description
Operating Voltage: 12V-36V Operating Current: 1-15A
Sensor: Hall Sensor Size: 63X42.5X17mm (L*W*H)
Speed Control: 0.1V-5V Or PWM Input
High Light:

jyqd

,

jyqd_v7.3e2

,

3 Phase BLDC Driver Board



12V 15A 500W Brushless DC Motor Driver With JY01 IC , Bldc Motor Driver Board,Arduino control/PWM control





Specifications

Operating Voltage DC 12V-36V
Operating current ≤15A
Output power ≤500W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X17mm (L*W*H)
Net weight 30g
Optional component

Speed regulating potentiometer

external 5 digit tachometer


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-phase brushless DC motors


2:please make sure to add heat sink when the output power more than 60W.JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 0


When installing the heat sink, please add insulation layer for 6pcs MOSFETs. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.







Wiring instructions

JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 1

JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 2











Mounting dimension

JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 3



JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 4JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 5JYQD-V7.3E2 3 Three Phase BLDC Driver Board 15A 12-36V For 42mm 57mm 6



Development Support:



We offer schematic diagram,IC customized programing, hardware design service
