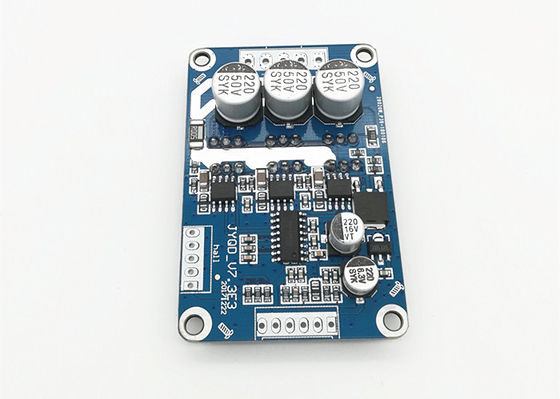

JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.3E3
Working Voltage:
24VDC
Working Current:
15A
PWM Speed Control:
Duty Cycle 0-100%
Speed Pulse Signal Output:
YES
Shape:
Rectangle
Color:
Blue
High Light:

brushless motor controller 500w

,

500w brushless motor controller

,

12v to 36v 500w brushless dc motor controller

Product Description
24VDC 15A current PWM speed control Hall effect BLDC motor driver board JYQD-V7.3E3

MODEL:JYQD-V7.3E3
OPERATING TEMPERATURE(℃) : -20---85℃
OPERATING VOLTAGE(V): 24V
Max Power:500W
CONTINUOUS OPERATING CURRENT:15A
PWM SPEED REGULATION:(1-20KHZ)Duty cycle 0-100%
ANALOG VOLTAGE SPEED REGULATION (V):0-5V
Speed pulse signal output:YES

Applications:
BLDC fan
BLDC motor
BLDC cooling fan
BLDC lawn mower
BLDC centrifugal blower

JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller 0JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller 1



Wiring diagram
JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller 2
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +



3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output



Dimensional drawing
JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller 3

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, reversing and enabling operation















JYQD_V7.3E3 12V 36V 15A 500w Brushless Motor Controller 4
