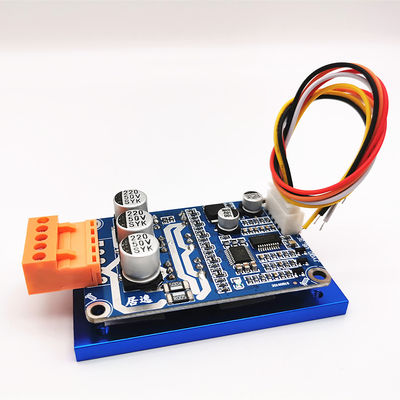

18-50V 500W bldc motor Driver Board JYQD-V8.5E-H

MOQ: 1
Payment Method: L/C, T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V8.5E-H
INPUT VOLTAGE:
18-50VDC
MAX WORKING CURRENT:
17A
PWM SPEED REGULATION:
PWM Frequency :1K-10KHz, 0-100% Dutycycle
ANALOG VOLTAGE SPEED REGULATION:
0-5V
High Light:

500w brushless dc driver

,

50w Brushless Dc Driver

,

500w brushless motor controller

Product Description
Product Description
JYQD-V8.5E-H is very compact size BLDC motor PWM driver board with heatsink,connector,wires and necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.
Its widely applied by the worldwide clients almost for 8 years,its mature and stable design are competent for many applications.
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 0
MODEL NO.
JYQD-V8.5E-H
OPERATING TEMPERATURE
-20—85℃
INPUT VOLTAGE
18-50VDC
MAX WORKING CURRENT
17A
PWM SPEED REGULATION
PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION
0-5V
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 1
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 2
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 3
Application guidelines
1: Confirm that the voltage and power paraparameters of the motor not exceed the range as specified.
2:This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (contact us for guidance)

  •

3:JYQD-V8.5E-H is sensorless BLDC motor driver board with heatsink,connectors,wires, it can drive the BLDC motor below 700W ,but needs normal ventilation.
4:The "5V" pin on the driver board is forbidden to connect with external power equipment.it is only suit for external potentiometer or switch for speed adjustment,reversing and singnal swtiching operation.
5: Please take note that JYQD-V8.5E-H driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.

18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 4
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 5
Description of wiring
1. Control port
5V — Driver board internal output voltage, for external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level is Forward direction,connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1V -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1K-10KHz; Duty cycle 0-100%
M—Speed pulse signal output
GND—Used for Driver board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C

GND----DC-
VCC----DC +

3:Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,Power port distance:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Overall dimensions

Board size customizable to your requests.
18-50V 500W bldc motor Driver Board JYQD-V8.5E-H 6

Please contact us if you need technical support.
OEM,ODM service are available !
