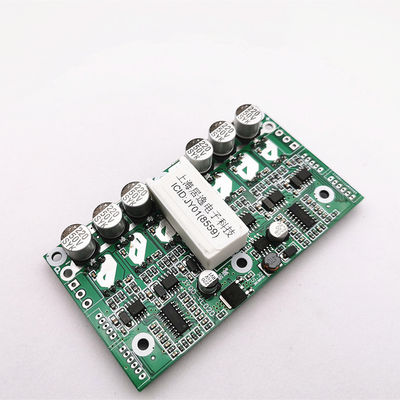

Electric Skateboard 15A 3 Phase BLDC Motor Driver Board

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-YL02D
Working Voltage:
12-36VDC
Drive Power:
500W/ Motor
PWM Speed Control:
Duty Cycle 0-100%
Speed Pulse Signal Output:
YES
Color:
Green
Operating Temp.:
-20 - 85℃
High Light:

3 Phase BLDC Motor Driver Board

,

15A BLDC Motor Driver Board

,

Electric Skateboard BLDC Driver Board

Product Description
12-36VDC 15A 3 Phase BLDC Motor dual Driver/controller For Wheelchair / Electric Skateboard

Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
JUYI
Model Number:
JYQD-YL02D(8559)
Working voltage:
12-36VDC
Drive mode:
Dual motor drive
Max working current:
15A/ motor
Single motor power:
540W

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X4 cm
Single gross weight:
0.060 kg
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated

Product Description

JYQD-YL02D is very compact size BLDC motor driver board with necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.

Its widely applied by the worldwide clients almostly for 5 years,its mature and stable design are competent for many applications.
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 0
MODEL NO.
JYQD-YL02D(8559)
OPERATING TEMPERATURE
-20—85℃
OPERATING VOLTAGE
12V-36VDC
WORKING CURRENT
15A
PWM SPEED REGULATION
PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION
0-5V
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 1
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 2
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 3
Application guidelines

1: This controller can drive two motors at same time,can be single or double controlled.

2: It has Reactive power brake function,Brake reverse charging protection release circuit,can be MCU controlled,


3: The "5V" port on the board can offer 300mA current to external MCU


  •




4: JYQD-YL02D is driver board without housing and heatsink, it can drive the BLDC motor below 100W without any heatsink,but needs normal ventilation.


5: Different Hall effect sensored BLDC motor has different Hall wires sequence, please do well-match before onload drive.



6: Add heatsink if the power more than 100W and keep good heat dissipation conditions for the board.
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 4
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 5
Description of wiring

1. Control port



GND:Only for control signal VR:Speed regulation,(0-2.5V or 0-5V linear speed regulation).PWM frequency:1K-5KHz. ZF:Forward and backward control(5V high level or 0V low level,if you use 3.3V MCU,you need do adjustment to 5V) M:speed pulse signal output EL:brake function, 0-2.5V or 0-5V linear brake 5V:5V power source for external control device(≤300mA)


2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
P- ----DC-
P+----DC +
3: Hall sensor port
Ha--- Hall a
Hb--- Hall b
Hc--- Hall c
GND---GND
5V---5V input
4: Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,motor phase:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 6

Overall dimensions

Board size customizable to your requests.
Electric Skateboard 15A 3 Phase BLDC Motor Driver Board 7


Please contact us if you need technical support.

OEM,ODM service are available!
Tags:

brushless motor driver,

bldc motor driver,

3 Phase BLDC Motor Driver Board
