High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+carton
Delivery Period: 5-10days
Payment Method: L/C, T/T,Paypal
Supply Capacity: 1000sets per day
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V8.3E
Max Current:
15A
Continuous Working Current:
7A
Operating Voltage:
12V-36V
O.V\L.V Protection:
Yes
PWM Speed Control:
Yes
Speed Pulse Signal Output:
Yes
High Light:

36V Brushless Motor Controller

,

15A Brushless Motor Controller

,

Signal Output BLDC Driver Board

Product Description

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output

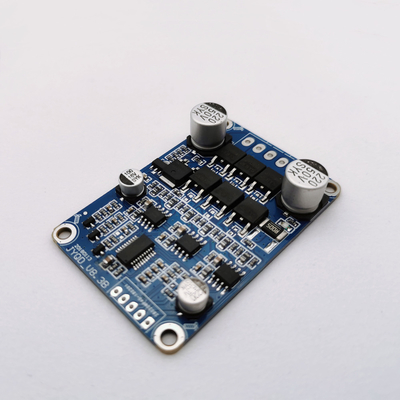

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output 0



Our products have compact size and efficient design ,they were selected by many companies worldwide for 3 years and have nice feedback generally.

They are widely used in control part of BLDC motor(sensorless)/blower/electric fan/electric water pump/logistic automation...

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output 1



Product parameter and features

Model number JYQD-V8.3E
Operating temp. -20—85℃
Operating voltage 12V-36V
Max current 15A
Cont.working current 15A
PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection YES
Speed pulse signal output YES



Application notes

1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly.



2. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-upwith load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)



3. JYQD_V8.3E driver board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.



4. Please take note that JYQD_V8.3E driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.



5.The 5V output port on the driver board prohibits connect external device. It is only applicable to the

external potentiometer and switch of the board for speed regulation and reversal.



6.The “M” terminal on the JYQD_V8.3E driver board is the motor speed pulse output signal (push-pull

output), and the maximum output current is less than 5mA.





Wiring diagram

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output 2





1.Power port



MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

GND----DC-

VCC----DC +



2.Control port



5V -----Driver board internal output voltage

M ---- Motor speed pulse signal output port, 5V pulse signal

Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

GND—Used for Drive board internal control



3.Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.



4.Control port distance: 2.54mm,Power port distance:3.96 mm



5.Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.





Dimensional drawing

High Current 15A 12-36V Brushless Motor Controller Speed Pulse Signal Output 3
