| MOQ: | 5pcs |
| Price: | Negotiable |
| Delivery Period: | 5-10days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000pcs per day |
BLDC Driver Board: 12-36V Operating Voltage, PWM Duty Cycle 0-100%, PWM Frequency 1-20KHz

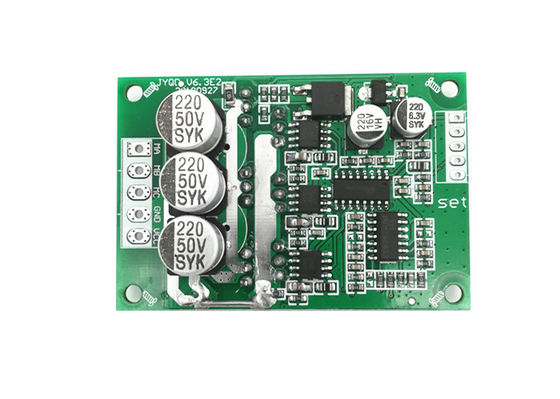

JYQD-V6.3E2 BLDC Driver Board is a DC Brushless Motor Driver Board which can control the speed range from 0-100%. With a wide operating voltage range of 12-36V, it offers excellent speed regulation accuracy of ±0.5% and a speed regulation range of 1:100. It is highly reliable and suitable for applications such as industrial automation, robotics, and medical equipment. The product offers superior performance for BLDC motor control and is very easy to use. It is also equipped with advanced features such as over-current protection, short-circuit protection, and over-temperature protection.
The JUYI JYQD-V6.3E2 BLDC Driver Board is ideal for a wide range of applications. This DC brushless driver board provides maximum current of 15A and has a speed control accuracy of ±0.5%. The speed control range is from 0 to 100%. With its direct current brushless driver board technology, this brushless DC driver board is perfect for applications such as motor control, robotics, automation, and more.
The JYQD-V6.3E2 BLDC Driver Board has been designed and manufactured by JUYI to ensure the highest quality and reliability. It features a wide speed control range, high speed control accuracy, and robust design.
The JYQD-V6.3E2 BLDC Driver Board is a perfect solution for applications such as motor control, robotics, automation, and more. It provides high speed control accuracy, wide speed control range, and robust design. With its advanced direct current brushless driver board technology, this brushless DC driver board is ideal for applications requiring high performance and precision.
| Parameter | Value |
|---|---|
| Size | 63mm*42.5mm*17mm |
| Working Temperature | -20℃~+85℃ |
| Speed Control Range | 0-100% |
| PWM Duty Cycle | 0-100% |
| Input Voltage | 12V-36V |
| Operating Voltage | 12-36V |
| Product model | JYQD-V6.3E2 |
| Product Name | BLDC Driver Board |
| Speed Control Accuracy | ±0.5% |
JUYI JYQD-V6.3E2 DC Brushless Driver Board is a direct current brushless driver board made in China, with a size of 63mm*42.5mm*17mm and speed regulation range of 1:100. It features a PWM frequency of 1-20KHz, protection functions of overvoltage/overcurrent, and speed control range of 0-100%.
As a professional BLDC driver board supplier, JUYI offers customization services for all DC brushless driver board products. Using advanced technology, we can perfectly meet your requirements for DC brushless driver board with your specific parameters.
Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control
5V -----Driver board internal output voltage
Signal ---- Motor speed pulse signal output port, 5V pulse signal.
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND----DC-
VCC----DC +
For any technical questions or concerns regarding our BLDC Driver Board, we offer the following support and service options:
For more information about our technical support and service options, please visit our support page.
