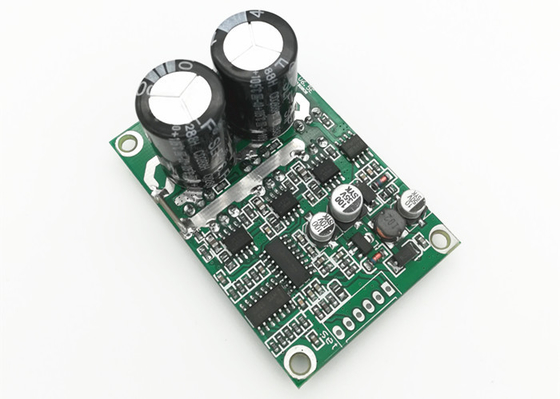

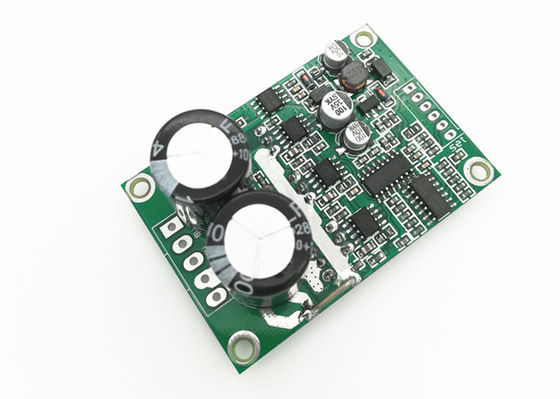

700W DC Brushless Motor Driver Board With PWM Frequency Speed Regulation

DC Brushless Motor Driver Board With PWM Frequency 1-20KHz & Working Temperature -20℃~+85℃

Product Description:

The Direct Current Brushless Driver Board, also known as DC Brushless Driver Board, is an advanced motor driver specifically designed for controlling DC Brushless motors. It is a high-performance, high-efficiency BLDC Driver Board with an outstanding speed regulation accuracy of ±0.5%. It is fully compatible with a wide range of input voltage range from 36V up to 72V DC and can support up to 16A max current. The board is small in size (63mm*42.5mm*33mm) and the speed control range is 0-100%. It is designed for reliable and smooth operation of DC brushless motors.

Features:

• Product Name: Brushless DC Driver Board
• Input Voltage: 36V-72V DC
• PWM Duty Cycle: 0-100%
• Working Temperature: -20℃~+85℃
• Colour: Green
• Size: 63mm*42.5mm*33mm
• Product Type: DC Brushless Motor Driver Board
• Product Model: BLDC Driver Board

Wiring diagram:

1.Control port

1. 5V -----Driver board internal output voltage
2. Signal ---- Motor speed pulse signal output port, 5V pulse signal.
3. Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
4. VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
5. GND—Used for Drive board internal control
6. Torque— For starting torque adjustment use, make sure remove the resistors for fixed-torque on the board before use this function (contact us if you want use this function before using)

2.Power port

MA ----motor phase A MB ---- motor phase B MC---- motor phase C GND----DC-

VCC----DC +

3.Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

4.Control port distance: 2.54mm,Power port distance:3.96 mm

5.Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Dimesional drawing:

Applications:

JUYI JYQD-V6.5E DC Brushless Motor Driver Board is the perfect solution for precise speed regulation of DC brushless motors. This DC Brushless Driver Board is carefully designed to ensure high accuracy with speed regulation accuracy of ±0.5%, and offers a wide operating voltage of 36V-72V, and a max current of 16A. With a size of 63mm*42.5mm*33mm, this DC Motor Brushless Driver Board is small and compact, making it suitable for a wide range of applications. The JYQD-V6.5E also offers a wide operating temperature range of -20℃~+85℃, providing reliable performance in a variety of environments.

Technical Parameters:

Customization:

FAQ:

A: The Brand Name of the BLDC Driver Board is JUYI.

A: The Model Number of the BLDC Driver Board is JYQD-V6.5E.

A: The BLDC Driver Board is produced in China.

A: The BLDC Driver Board is suitable for various industrial applications, such as water pumps,  industrial automation.
