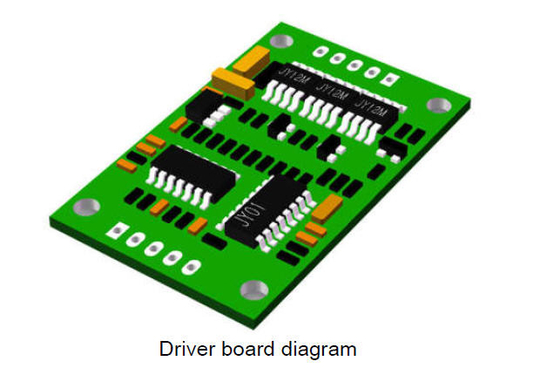

12V/24V DC BLDC Motor Driver Board for Automation Control

Product Description:

The JYQD-V6.7 DC Brushless Driver Board is a powerful and versatile brushless DC driver board designed for direct current applications. It is capable of providing up to 3A of current and operating on both 12V and 24V DC input voltages. It features an analog voltage speed regulation, allowing users to adjust the speed of their brushless DC motors. This Brushless DC Driver Board is ideal for a variety of applications such as robotics, automated machinery, and more.

Features:

• Product Name: DC Brushless Motor Driver Board
• Working Temperature: -20℃~+85℃
• Speed Control Range: 0-100%
• Colour: Green
• Analog voltage speed regulation: Yes
• PWM Frequency: 1-20KHz
• Product Type: Direct Current Brushless Motor Driver Board
• Product Type: Direct Current Brushless Driver Board

Technical Parameters:

Wring Diagram:

1. Control port

5V -----Driver board internal output voltage

SC ---- Motor speed pulse signal output port, 5V pulse signal.

Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

GND—Used for Drive board internal control

2. Power port

MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

GND----DC-

VCC----DC +

3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

4. Control port distance: 2.54mm,Power port distance:3.96 mm

5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Dimension Drawing:

Applications:

The JUYI JYQD-V6.7 Brushless DC Driver Board is a reliable and versatile DC brushless motor driver board designed for a variety of applications. It is equipped with a speed pulse signal output, speed regulation accuracy of ±0.5%, a PWM duty cycle of 0 to 100%, and an analog voltage speed regulation. This direct current brushless motor driver board is ideal for applications such as robotics, home appliances, industrial automation, and other motor-driven equipment. It is durable and offers superior performance with excellent control capabilities. The JUYI JYQD-V6.7 Brushless DC Driver Board is sure to provide an enhanced user experience and improved motor control.

Customization:

• Brand Name: JUYI
• Model Number: JYQD-V6.7
• Place of Origin: China
• Colour: Green
• Max Current: 3A
• Working Temperature: -20℃~+85℃
• Speed pulse signal output: Yes
• Operating Voltage: 12V/24V DC

This DC motor brushless driver board, also known as DC brushless driver board or direct current brushless driver board, is designed and manufactured by JUYI. The model number is JYQD-V6.7 and it is painted with green colour. It has a working temperature range of -20℃~+85℃ and a max current of 3A. In addition, it can output speed pulse signal and operates on either 12V or 24V DC.We  provide customized service and technical support.

FAQ:

• Q: What is the Brand Name of this BLDC Driver Board?
  A: The Brand Name of this BLDC Driver Board is JUYI.
• Q: What is the Model Number of this BLDC Driver Board?
  A: The Model Number of this BLDC Driver Board is JYQD-V6.7.
• Q: Where is this BLDC Driver Board manufactured?
  A: This BLDC Driver Board is manufactured in China.
• Q: What applications can this BLDC Driver Board be used for?

 A: This BLDC Driver Board can be used for a variety of applications such as robotics, industrial automation, and medical systems.
