Product Details:
|
| Product Model: | JYQD-V7.0 | Speed Control Mode: | PWM/Voltage |
|---|---|---|---|
| Product Name: | BLDC Driver Board | PWM Frequency: | 1-20KHz |
| Speed Control Range: | 0-100% | PWM Duty Cycle: | 0-100% |
| Colour: | Blue | Analog Voltage Speed Regulation: | Yes |
| Operating Voltage: | 12V/24V | ||
| High Light: | PWM Brushless Driver Board,JYQD-V7.0 Driver Board,Direct Current BLDC Driver Board |
||

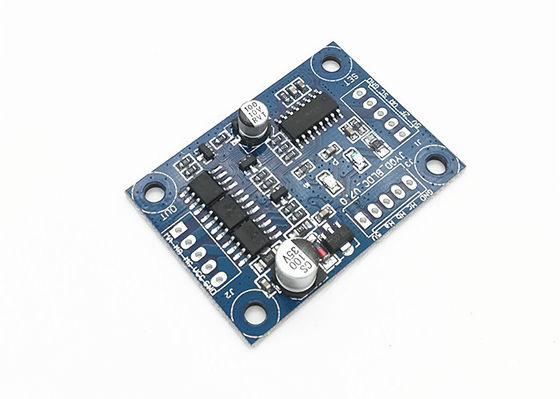

The DC Brushless Driver Board is an essential tool for controlling the speed and torque of direct current brushless motors. It is a Direct Current Brushless Driver Board with a small size of 45mm*32mm*10mm. It also has a wide PWM frequency range of 1-20KHz, PWM Duty Cycle of 0-100%, Max Current of 3A, and Speed Regulation Accuracy of ±0.5%. The Direct Current Brushless Motor Driver Board is ideal for applications where precise control of speed and torque is required.Get technical file please click here
| Parameters | Specifications |
|---|---|
| Product model | JYQD-V7.0 |
| Analog voltage speed regulation | Yes |
| Operating Voltage | 12V/24V DC |
| Input Voltage | 12V/24V DC |
| PWM Duty Cycle | 0-100% |
| PWM Frequency | 1-20KHz |
| Speed Regulation Accuracy | ±0.5% |
| Max Current | 3A |
| Hall senor | Yes |
| Working Temperature | -20℃~+85℃ |
JUYI JYQD-V7.0 Brushless DC Driver Board is a great choice to control DC brushless motors and helps you to create dynamic motion control systems. It is built with a Speed Regulation Accuracy of ±0.5%, Max Current of 3A, Hall Sensor, and a PWM Duty Cycle of 0-100%. This DC Motor Brushless Driver Board is designed with a blue colour and has excellent performance. It is an ideal solution for many motion control and robotics applications.
We provide technical support and services for our BLDC Driver Board products.
We provide comprehensive technical support to ensure the best performance of our BLDC Driver Board products. Our experienced engineers are available to answer any questions you may have and provide solutions to any problems that you may encounter. Through our technical support, we aim to provide the highest level of customer satisfaction.
