BLDC Motor Driver Board For Hall Sensor Motor With Speed Regulation

12V-36V JUYI BLDC Driver Board For Hall Senser Motor With PWM And Analog Voltage Speed Regulaiton

Features:

• Product Name: BLDC Driver Board,DC Brushless Driver Board,Direct Current Brushless Driver Board
• Speed Control Mode: PWM/Voltage
• Max Current: 16A
• PWM Duty Cycle: 0-100%
• Size: 63mm*42.5mm*16mm

Product Description:

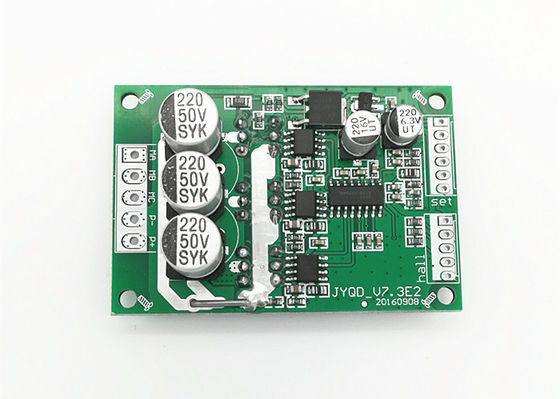

The JYQD-V7.3E2 DC Motor Brushless Driver Board is a great solution for controlling DC brushless motors. This board offers a wide input voltage range of 12V to 36V DC and a maximum current of 16A. It also features a compact size of 63mm*42.5mm*16mm, making it ideal for applications with limited space. This DC brushless motor driver board control provides users with a highly efficient and stable driving performance, making it an ideal choice for a variety of DC motor applications.

Technical Parameters:

Application guidelines:

1. 1.Confirm that the voltage and power parameters of the motor not exceed the range as specified.



   2.Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.



   3.JYQD-V7.3E2 is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.



   4.The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation

2.

Wiring diagram:

1.

2. 1.Control port

   5V — Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

   Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

   VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

   EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

   Signal— Speed pulse signal output

   GND—Used for Driver board internal control



   2. Power port

   MA ----motor phase A

   MB ---- motor phase B

   MC---- motor phase C

   P- ----DC-

   P+----DC +



   3.Hall sensor port

   Ha--- Hall a

   Hb---Hall b

   Hc---Hall c

   GND---GND

   5V---5V output



   4.Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.



   5.Control port distance: 2.54mm,Power port distance:3.96 mm



   6.Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Dimensional drawing:

Applications:

JUYI JYQD-V7.3E2 DC Brushless Driver Board is an ideal choice for precisely controlling a brushless DC motor in a wide range of applications.This DC brushless motor control board is designed to work with a 12V-36V DC input voltage, and it will keep your motor running efficiently and smoothly. It can be used for various applications, including robotics, drones, 3D printing, instrumentation, security systems and more.
