| MOQ: | 5pcs |
| Price: | Negotiable |
| Standard Packaging: | PE bag+carton |
| Delivery Period: | 5-10days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000pcs per day |

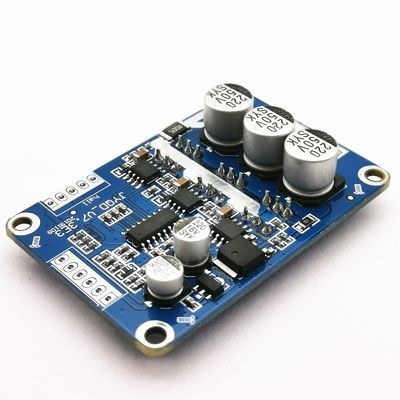

JUYI JYQD-V7.3E3 is a brushless direct current motor controller with a compact size and high performance. The voltage input of this driver board is 12-36VDC,Which is used in a wide range of applications, whether it is mechanical engineering, automation, robotics or electric vehicles, our products are perfectly adapted to your needs. Whether you're in an energy-efficient industrial environment or in an innovative smart home device, our control boards deliver superior performance and reliability.
Our 12-36V brushless motor control boards offer superior power output and precise speed control. With advanced PWM speed regulation technology, it can easily cope with various load situations and achieve smooth and efficient operation.
In addition, our control boards offer rich interfaces and flexible expandability for seamless connection and integration with other devices or systems. Get more details please click here
1.Speed pulse signal output
2.Fit hall motor
3.PWManalog voltage speed regulation
4.Wide usage
5.Easy to install
6.High efficiency
7.Precise speed control
8.Long service time
|
MODEL |
OPERATING TEMPERATURE (℃) |
OPERATING VOLTAGE (V) |
MAX CURRENT (A) |
CONTINUOUS OPERATING CURRENT (A) |
PWM SPEED REGULATION (1-20KHZ) |
ANALOG VOLTAGE SPEED REGULATION (V) |
Speed pulse signal output |
|
JYQD-V7.3E3 |
-20—85℃ |
12V-36V |
16A |
15A |
Duty cycle 0-100% |
0-5V |
√ |
1.Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2.Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding,
3.you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
JYQD-V7.3E3 is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4.The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation
Our BLDC driver boards are widely uesed in mechanical engineering, logistic automation, robotics, electric vehicles, household electrics, power tool, etc.
1.Q:Can I place a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
What about the lead time
2.It is spending 30 days generally after you making the payment.
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc
5. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
