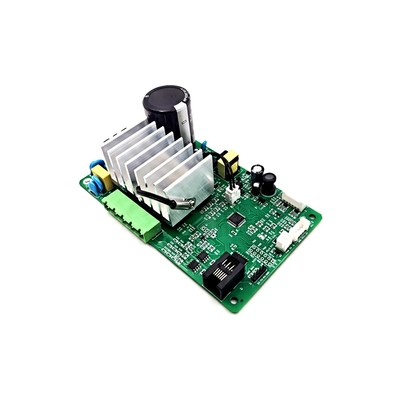

400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation
  • name
  • name
  • name
  • name
  • name
  • name

400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation

MOQ: 1
Price: $40-42.80
Details Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Bextremeshell
Model Number
DH-BLD2202TD
Working Voltage:
110VAC/220VAC
Rated Power:
400W
Analog Voltage:
0-5V
PWM Frequency:
500Hz-10KHz
UART Interface:
TTL
Temperature Protection:
90℃
Copper Thickness:
1 Oz
Working Mode:
Hall/Sensorless
Control Mode:
Speed Open-loop/closed-loop
Speed Regulation:
0-5V Voltage/PWM Duty Cycle/serial Communication
Protection Features:
Over-current, Short Circuit, Over-voltage, Under-voltage, Locked-rotor, Over-temperature
Current Clamping:
Yes
Hall Phase Sequence:
Self-learning
Acceleration Time:
Adjustable
Deceleration Time:
Adjustable
Highlight:

400W BLDC motor controller with PWM

,

110VAC BLDC driver board

,

220VAC motor speed regulator

Product Description
High Precision BLDC Motor Controller, 110/220VAC Input, Rated Power Consumed 400W, With PWM Speed Regulation
Product Specifications
Attribute Value
Type consumer electronics pcba
Supplier Type General
Copper Thickness 1 oz
Functional Application motor driver
Working Voltage 110VAC/220VAC
Analog voltage 0-5V
PWM 500Hz-10KHz
UART TTL
Temperature protection 90℃
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 0
(The debugging panel is not included)
Key Features
  • Hall/Sensorless working mode, support Hall phase sequence self-learning
  • Support speed open-loop/closed-loop control mode
  • Acceleration and deceleration time can be adjusted
  • Speed regulation mode: 0-5V voltage/PWM duty cycle/serial communication port
  • Start-stop control signal, direction signal, speed feedback FG output
  • Hardware self-test, over-current, short circuit, over-voltage, under-voltage, locked-rotor, over-temperature protections
  • Current clamping function
Port Descriptions
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 1
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 2
Feature Description
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 3
Wiring Diagram
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 4
Installation Dimensions
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 5
