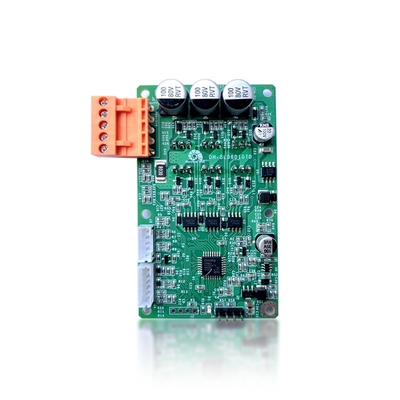

DH-BLD6010TD BLDC Motor Controller 15-60VDC 20A UART Port

MOQ:	1
Price:	$14.90-17.90

Details Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Bextremeshell

Model Number

DH-BLD6010TD

Working Voltage:

15-60VDC

Max Current:

Max Power:

Control Mode:

Speed Open-loop/closed-loop

Communication Port:

Speed Signal Output:

Over-current Protection:

Under-voltage Protection:

Locked-rotor Protection:

Over-heating Protection:

Short Circuit Protection:

Over-voltage Protection:

Hardware Self-test:

Copper Thickness:

Working Mode:

Hall Sensored Or Sensorless

Highlight:

BLDC motor controller 20A UART

BLDC driver board 15-60VDC

motor controller with warranty

Product Description

DH-BLD6010TD Dual Purpose Controller

Industrial-grade controller for Hall or sensorless BLDC motors with 15-60VDC input, max 500W power, and UART port configuration.

Product Specifications

Attribute	Value
Type	Industrial Control PCBA
Working Voltage	15-60VDC
Max Current	20A
Application	Drive hall sensor/sensorless BLDC motor
Function	Speed open-loop/closed-loop control mode
Protections	Under-voltage, locked-rotor, over-heating, short circuit, over-voltage
Supplier	Changzhou Bextreme Shell Motor

Key Features

Hall sensored or Sensorless working mode with automatic matching through self-learning function
Supports speed open-loop/closed-loop control mode
Adjustable acceleration and deceleration
Multiple speed regulation modes: 0-5V voltage/PWM duty cycle/Serial communication port (UART)
Enable control signal, direction signal input, speed feedback FG output
Comprehensive protection features including hardware self-test, over-current, short circuit, and temperature protection
Current clamping function for enhanced safety

Working Modes

The DH-BLD6010TD operates in two modes: Hall sensored or Sensorless. During power-on, the controller automatically detects Hall signals. If no Hall signal is detected or the signal is faulty, it defaults to Sensorless mode.

The controller features Hall signal sequence self-learning capability. When enabled via serial command (AA 01 1E 01 00 00 00 CC), the LED flashes 13 times to indicate successful learning completion.

Port Configuration

Wiring Diagram

Installation Dimensions
