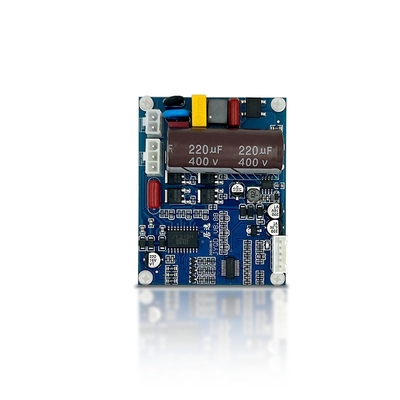

Name: JYQD-V8.8B BLDC Motor Controller 100W 110V-220V AC Input
Brand: Changzhou Bextreme Shell Motor Technology Co.,Ltd
SKU: JYQD-V8.8B
Price: 16.90 USD
Availability: InStock

MOQ:	1
Price:	$16.90-17.90

Details Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Bextremeshell

Model Number

JYQD-V8.8B

Model Number:

JYQD-V8.8

Operating Temp:

-20--85℃

Operating Voltage:

90-265V AC

Max Current:

Cont.working Current:

0.5A

PWM Frequency:

1-20KHZ

PWM Duty Cycle:

0-100%

Analog Voltage Range:

0-5V

Output Power:

100W

Input Resistance:

20K Ohm

Speed Pulse Output:

5V Pulse Signal

Max Output Current:

5mA

Copper Thickness:

1 Oz

Motor Phases:

3-phase

Motor Type:

Brushless Sensorless DC

Highlight:

BLDC motor controller 100W

BLDC driver board 110V-220V

motor controller with warranty

Product Description

Original JYQD-V8.8B Motor Controller

AC110V-220V Input, 100W Output For BLDC Sensorless Motor

Product Specifications

Attribute	Value
Type	Controller Board
Supplier Type	General
Copper Thickness	1 oz
Functional Application	Circuit Protection

Product Overview

Original JYQD-V8.8B high voltage input BLDC motor controller with 110V-220VAC input and continuous 100W output for 3-phase brushless DC motors.

Technical Parameters

(For Brushless Sensorless DC motor)

Model number: JYQD-V8.8
Operating temperature: -20°C to 85°C
Operating voltage: 90-265V AC
Max current: 1A
Continuous working current: 0.5A
PWM speed control: PWM frequency 1-20KHz; Duty cycle 0-100%
Analog voltage speed regulation: 0-5V
Over voltage/Low voltage protection: Yes
Speed pulse signal output: Yes

Wiring Diagram

Control Port

5V - Driver board internal output voltage
M - Motor speed pulse signal output port, 5V pulse signal
Z/F - Rotating direction control ports. Connect "5V" high level or no connect for Forward direction, connect 0V low level or GND for reverse direction
VR - Speed control port. Analog voltage linear speed regulation 0.1V-5V (input resistance 20K Ohm). Connect to GND when using PWM speed regulation
GND - Used for Drive board internal control

Power Port

U/MA - Motor phase A
V/MB - Motor phase B
W/MC - Motor phase C
AC - L
AC - N

Important Notes:

Use shielded wires if the driver board is more than 50 cm from the motor
This AC input driver board can be built-in for applications
Ensure proper insulation between driver MOSFET and heatsink/installation plate

Application Guidelines

Confirm motor voltage and power parameters do not exceed driver board specifications
Designed for 3-phase brushless sensorless motors, but may require adjustment for optimal performance
Board comes without housing or heatsink. For motors >60W, heatsink is required
5V output port is only for board's external potentiometer and switch
"M" terminal provides motor speed pulse output signal (push-pull output, max 5mA)

Dimensions
