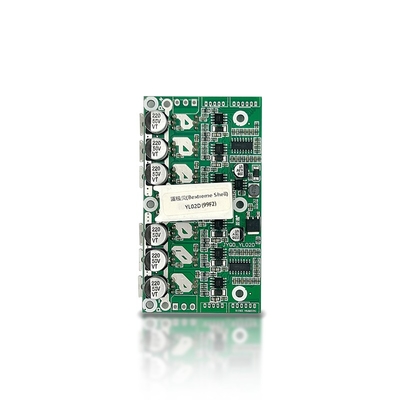

JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output
  • name
  • name
  • name
  • name
  • name
  • name

JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output

MOQ: 1
Price: $16.92-17.91
Details Information
Product Description
Detail Information
Power Input:
12-36VDC
Rated Power:
400W*2
Max Power:
540W*2
Max Current:
15A*2
Control Algorithms:
Square Wave
Dimensions:
100mmx59mmx20mm
Speed Control:
PWM/0-5V
Speed Feedback:
Yes
Working Temp:
-20℃--85℃
Motor Type:
Hall Sensor Motor
PWM Frequency:
1KHz-10KHz
Brake Voltage:
0-5V Linear
External 5V:
≤300mA
Forward/reverse Control:
5V High/0V Low
Protection Functions:
Over-current, Short Circuit, Over Voltage, Under Voltage, Locked Rotor, Over-heating
Highlight:

12-36VDC BLDC motor controller

,

400W dual output motor controller

,

BLDC driver board with warranty

Product Description
Original JYQD-YL02D 12-36VDC Dual Motor Controller
High-performance BLDC motor driver for wheelchairs, electric skateboards, and various micro electric vehicles.
Key Specifications
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 0
  • Model No.: JYQD-YL02D(99F2)
  • Power Input: 12-36VDC
  • Rated Power: 400W*2
  • Max Power: 540W*2
  • Max Current: 15A*2
  • Suitability: Hall sensor motor
  • Control Algorithms: Square wave
  • Dimensions: 100mm x 59mm x 20mm
  • Speed Control: PWM/0-5V
  • Speed Feedback Signal Output: Yes
  • Working Temp: -20℃ to 85℃
Protection Features
Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating protection.
Applications
This DC brushless driver board provides precise speed regulation (0-100%) and is suitable for various applications:
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 1
  • Electric skateboard
  • Electric scooter
  • Electric wheelchair
  • Hoverboard
  • Drones
  • Electric unicycle
  • Electric Moped
  • Electric go kart
  • RC car
  • Industrial robot
  • Logistics conveyor belt
  • Automation equipment
  • CNC machines
  • Self-propelled lawn mowers
Product Images
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 2
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 3
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 4
Wiring and Control Ports
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 5
Control Port Introductions:
  1. GND: Only for control signal
  2. VR: Speed regulation (0-2.5V or 0-5V linear speed regulation). PWM frequency: 1KHz-10KHz.
  3. ZF: Forward and reverse control (5V high level or 0V low level)
  4. M: Speed pulse signal output
  5. EL: Brake function port, 0-2.5V or 0-5V linear brake
  6. 5V: 5V power source for external control device (≤300mA)
Important Reminder:
  • Different hall sensored motors have different hall wire sequences - ensure proper matching before loading the drive.
  • Add a heatsink if power exceeds 100W and ensure good heat dissipation conditions for the board.
Product Dimensions
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 6
Manufacturing Process
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 7
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 8
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 9
Packaging
The BLDC motor driver is well packed in an individual antistatic bag.
Frequently Asked Questions
JYQD-YL02D 12-36VDC BLDC Motor Controller 400W Dual Output 10
Lead Time:
  • Sample: 5 days
  • Mass order: 2-3 weeks
Minimum Order Quantity:
1 set for all series products
Warranty:
12 months from the date of delivery
Technical Support:
We offer 1-on-1 service and technical support
Tags:

brushless motor driver,

bldc motor driver,

12-36VDC BLDC motor controller
