JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control

MOQ: 1
Price: $4.90-5.90
Details Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Bextremeshell
Model Number
JYQD-V6.7
Power Input:
12/24VDC
Rated Power:
50W
Max Power:
60W
Max Current:
3A
Control Algorithm:
Square Wave
Dimensions:
45mm X 28mm X 10mm
Speed Control:
PWM/0-5V
Speed Feedback:
Yes
Working Temperature:
-10℃ To 60℃
PWM Frequency:
1K-20KHZ
PWM Duty Cycle:
0-100%
PWM Amplitude:
5V
Control Port Distance:
2.54mm
Power Port Distance:
3.96mm
Motor Suitability:
Sensorless Motor
Highlight:

BLDC motor driver with speed control

,

50W BLDC driver board 12/24VDC

,

JYQD-V6.7 motor driver with warranty

Product Description
JYQD-V6.7 BLDC Motor Driver for 50W Micro Sensorless Motor
Product Attributes
Attribute Value
Accessory Type Motor driver
Usage Motor
For Use With BLDC motor
Key Specifications
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 0
Model No.: JYQD-V6.7
Power Input: 12/24VDC
Rated Power: 50W
Suitability: Sensorless motor
Max Power: 60W
Max Current: 3A
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Control Algorithms: Square wave
Dimensions: 45mm × 28mm × 10mm
Speed Control: PWM/0-5V
Speed Feedback Signal Output: Yes
Working Temperature: -10℃ to 60℃
Applications

The JYQD-V6.7 BLDC motor driver board is designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy for various applications.

JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 1
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 2
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 3
  • Electric skateboard
  • Electric scooter
  • Electric wheelchair
  • Hoverboard
  • Drones
  • Electric unicycle
  • Electric Moped
  • Electric go kart
  • RC car
  • Industrial robot
  • Logistics conveyor belt
  • Automation equipment
  • CNC machines
  • Self-propelled lawn mowers
  • Consumer electronics
  • Home appliances
  • Industrial equipment

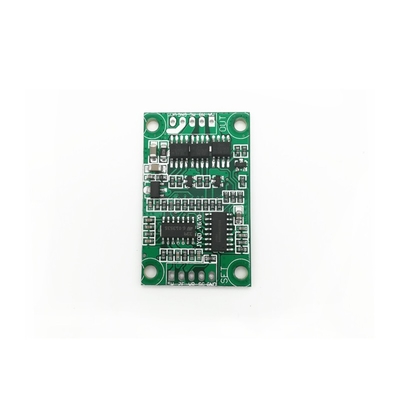

Product Appearance
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 4
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 5
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 6
Application Guidelines
  1. Confirm that the voltage and power parameters of the motor do not exceed the specified range.
  2. This driver board can drive motors below 35W without heatsink but requires normal ventilation.
  3. The 5V output port is only for external potentiometer or switch for speed adjustment, not for powering external equipment.
Wiring Diagram
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 7
Control Port
  • 5V: Internal output voltage for external potentiometer or switch
  • Z/F: Rotating direction control ports (5V=Forward, GND=Reverse)
  • VR: Speed control port (0.1V-5V analog or PWM 1K-20KHz)
  • SC: Speed pulse signal output (5V pulse)
  • GND: Driver board internal control ground
Power Port
  • MA: Motor phase A
  • MB: Motor phase B
  • MC: Motor phase C
  • GND: DC negative
  • VCC: DC positive
Important Notes: Use shielded wires for distances over 50cm between driver and motor. Ensure proper insulation between driver MOSFET and heatsink. Control port distance: 2.54mm, Power port distance: 3.96mm.
Dimensions
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 8
Manufacturing Process
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 9
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 10
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 11
Packaging

The BLDC motor driver is well packed in an individual antistatic bag.

FAQ
JYQD-V6.7 BLDC Motor Driver 50W 12/24VDC with Speed Control 12
What's the lead time?
Sample: 5 days | Mass order: 2-3 weeks
What's the MOQ?
1 set for all series products
What's the warranty?
12 months from the date of delivery
How is the technical support?
We offer 1-on-1 service and technical support
